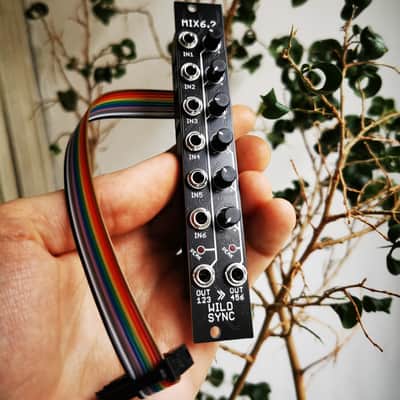

WILDSYNC MIX6.2 mixer DIY kit

MIX6.2 is a 6 channel signal mixer. It has 6 inputs and two outputs with 10Vpp (eurorack level) peak indicator. 123 output is mixed into the 456 output if nothing is inserted in the 123 out jack. It can work like 2x3 channel mixer or one 6 channel mixer.

By default, the MIX6.2 is designed to mix audio signals, but it can be modified to mix CV signals instead.
There are 8 solder jumpers on the back side which can be connected, to turn the MIX6.2 into a CV mixer.
MIX6.2 has a gain level of 1X, but you can increase it to level 2X or 4X with solder jumpers.

Width: 4HP

Depth: 25mm

Power: 15mA +12v; 15mA -12v
+ 15cm power cable included

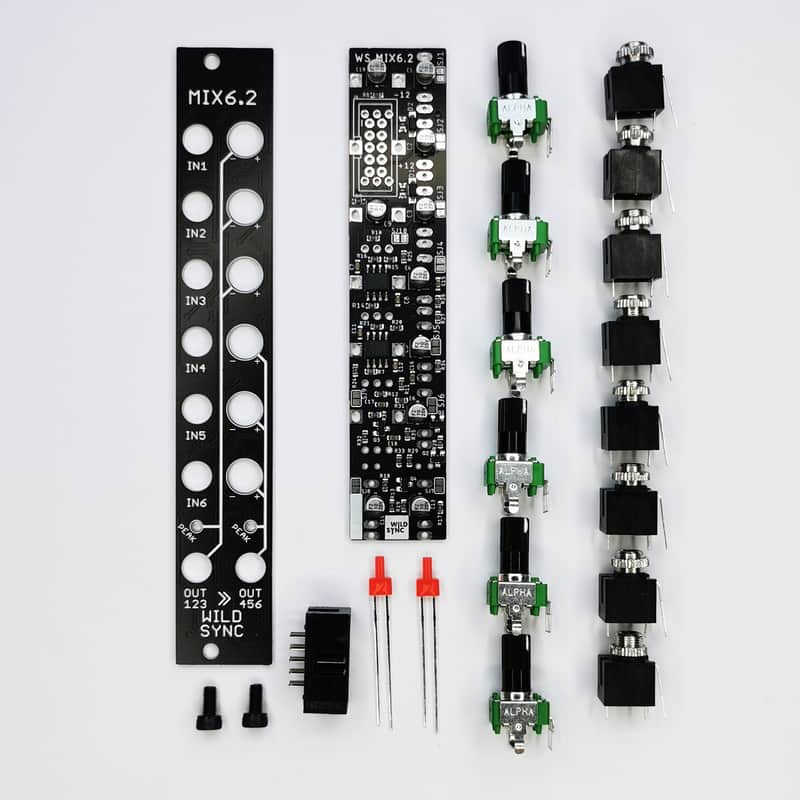

This module board comes with already soldered SMD components, so its assembly will not be difficult.

The DIY kit contains detailed assembly instructions, quality electronic components and PCB that have passed quality control at the factory.

All DIY kits are out of warranty.
