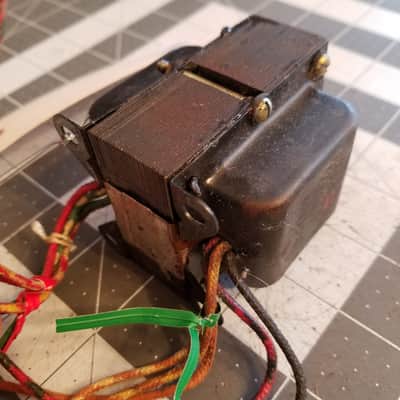

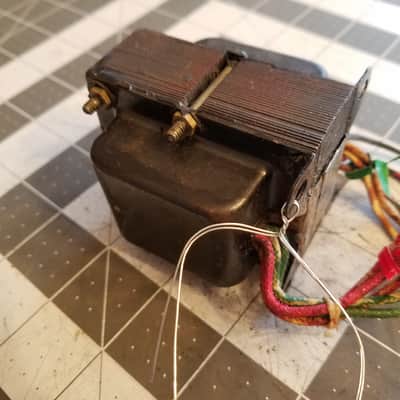

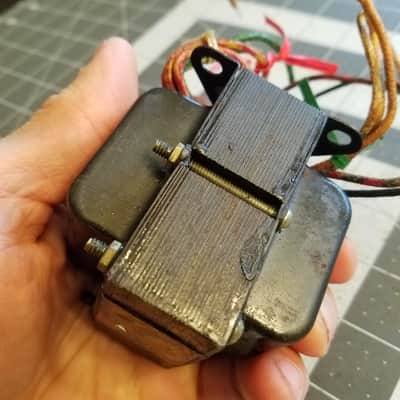

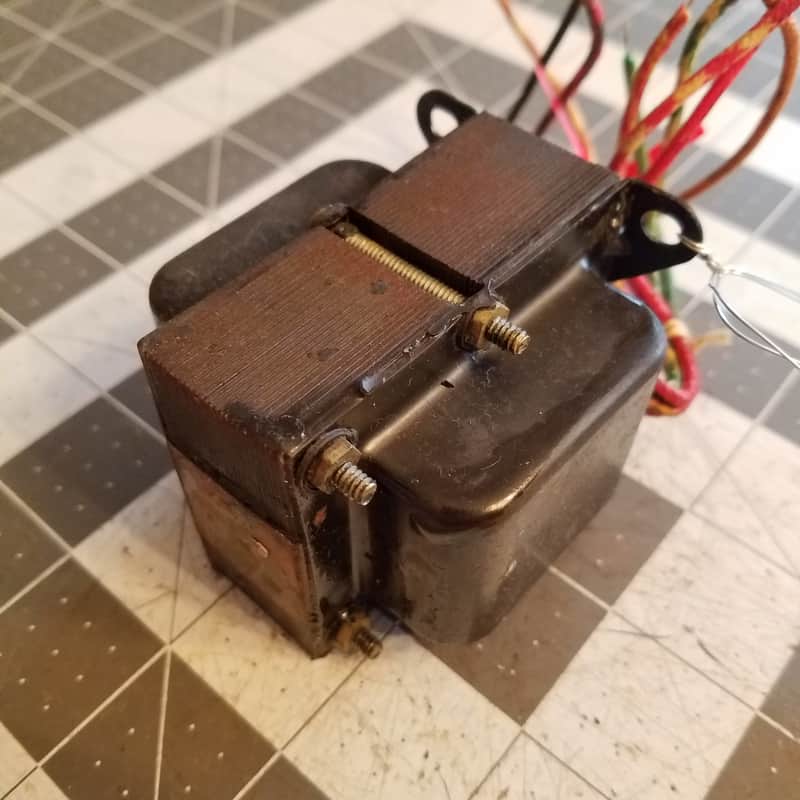

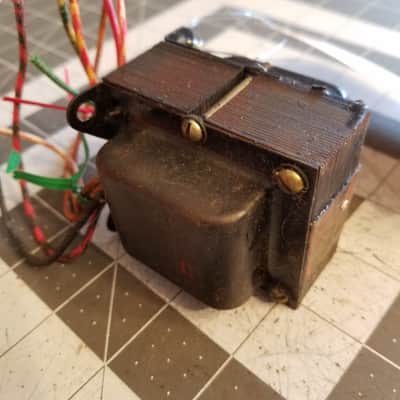

Woodward Schumacher G55P17801 Transformer 300-0-300 / 6.3 V Webcor Vintage Power Tested Tube Amp Project 6X4 1963

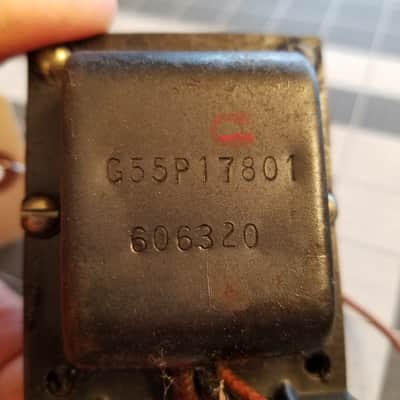

Fully 60 Hz AC tested and guaranteed vintage tube preamp transformer. AC testing using an oscilloscope allows us to find and reject transformers with noisy or lossy outputs, which a simple resistance or continuity test will not reveal. Our testing also ensures that you have access to the wires and that they are bundled sensibly, eliminating the "discovery phase" (see below!). Made in USA in 1963 by Woodward-Schumacher for Webcor. IEA date code 606320. Weighs 1 lbs 14 oz. Bolt spacings 44 mm by 41 mm. Quantity sometimes available - please enquire.

This transformer originally provided B+ and heater supply for these tubes: 2 12AX7, 6X4, 12AU7, 6BQ5, EM87

Here are the verified connections for this transformer:

Input: 117V

Outputs:
600 VAC center tapped
6.3 VAC center tapped
Two total 6.3 VAC outputs!

Brown pair is CT 6.3V.

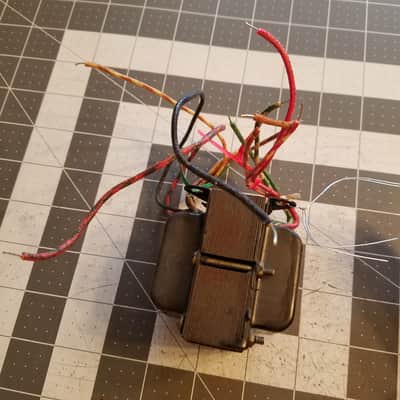

We use a standardized wire identification scheme featuring bright cable ties. In case of any ambiguity, 117V input will be wrapped with a black cable tie, red is high-voltage, yellow is 5V for rectifier, green is 6.3V, blue is 12.6V, white is 117V out for 220V input or tubes with series heaters, purple or grey is a second (or third!) 6.3V output. The voltages run a bit higher when run at modern AC levels instead of the 117 VAC that was specified in the 1950s and 1960s. Serial number T-1168.
