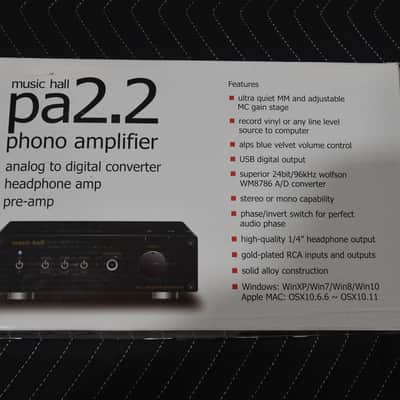

Music Hall PA2.2 Phono Preamplifier

• Featured in our article: Best headphone amps for 2024
• compatible with moving magnet and moving coil phono cartridges
• high performance 24-bit/96kHz Wolfson WM 8786 analog-to-digital converter
• quiet, energy-efficient external power supply

Back Panel:

• separate grounded RCA inputs for turntables with MM or MC cartridges
• switchable gain for moving coil cartridges (+20dB/+26dB)
• stereo RCA line-level input for connecting another audio source like a cassette deck or CD player
• USB port (Type B) for connecting to a Mac® or Windows® computer (cable included)
• • 24-bit/96kHz linear PCM output
• fixed and variable line-level audio outputs for compatibility with receivers, integrated amps, power amplifiers, and powered speakers

Front Panel:

• power on/off switch
• stereo/mono switch
• phase invert switch lets you match the polarity of a recording (0°/180°)
• phono/line level input selector
• 1/4" headphone output
• • variable line output is muted automatically when headphones are in use; fixed output remains active
• volume control for headphone amp or preamplifier section

Performance Specs:

• signal-to-noise ratio: 70 dB (MM); 75 dB (MC); 120 dB (line level)
• THD: less than 0.01% (MM); less than 0.05% (MC)
• RIAA response accuracy ± 0.3 dB (20-20kHz)

Dimensions and Warranty:

• 6-5/16"W x 2"H x 6-3/4"D
• weight: 2 lbs.
