B&C 6PS38 6.5" Midbass Woofer 8-Ohms Low Frequency Speaker 300W
Price$145.02
Free Shipping
from Brooklyn, NY
Listed:over a month ago
Views:116
Saves:1
Brooklyn, NY, United States
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
Authorized Dealer/ Brand New Item / In Stock!

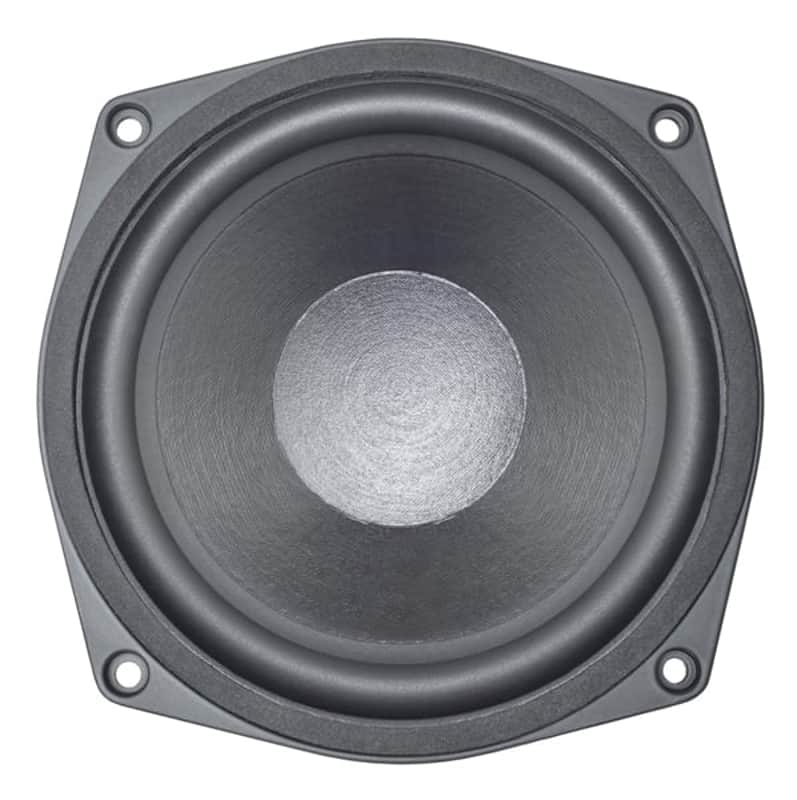

B&C 6PS38 6.5" Professional Woofer, 8 Ohm, 300W, Low Frequency 6.5 Inches Woofer
The B&C Speakers 6PS38 high efficiency 6.5" woofer is engineered to provide excellent results when installed in a variety of professional loudspeaker systems. The 6PS38 features very smooth response from 70 to 5,000 Hz. A copper voice coil on a fiberglass former promotes efficiency combined with durability.
Product Specifications
- Nominal Diameter6-1/2"
- Power Handling (RMS)150 Watts
- Power Handling (max)300 Watts
- Impedance8 ohms
- Frequency Response70 to 5,000 Hz
- Sensitivity94 dB 1W/1m
- Voice Coil Diameter1.5"
Thiele-Small Parameters
- Resonant Frequency (Fs)75 Hz
- DC Resistance (Re)5.4 ohms
- Voice Coil Inductance (Le)0.6 mH
- Mechanical Q (Qms)11.7
- Electromagnetic Q (Qes)0.31
- Total Q (Qts)0.3
- Compliance Equivalent Volume (Vas)0.28 ft.³
- BL Product (BL)10.8 Tm
- Diaphragm Mass Inc. Airload (Mms)14g
- Maximum Linear Excursion (Xmax)6 mm
- Surface Area of Cone (Sd)132 cm²
Materials of Construction
- Cone MaterialPaper
- Surround MaterialRubber
- Voice Coil Wire MaterialCopper
- Voice Coil FormerFiberglass
- Magnet MaterialFerrite
Mounting Information
- Overall Outside Diameter7.4"
- Baffle Cutout Diameter5.7"
- Depth3.2"
- Bolt Circle Diameter6.7"
- # Mounting Holes4
