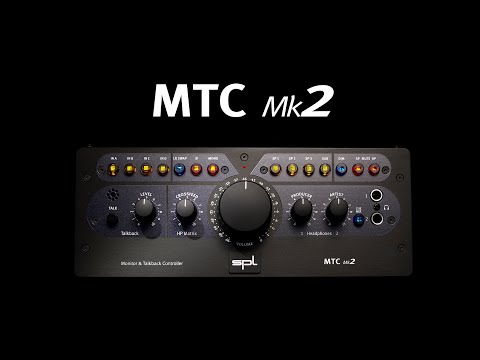

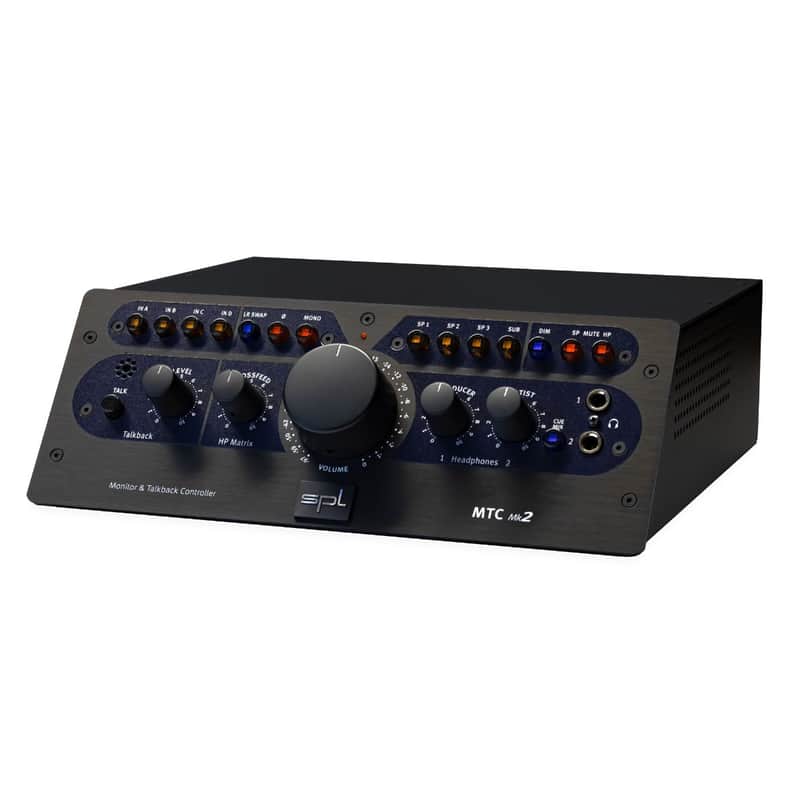

SPL MTC MKII  Model 2120 Monitor and Talkback Controller

SPL MTC Mk2 - The Next Generation Monitor & Talkback Controller

The SPL MTC Mk2 redefines studio standards, bringing together advanced source and speaker selection, multiple monitoring modes, an integrated premium talkback system, and headphone amplifiers with the Phonitor Matrix. Its internal audio operating voltage of +/-18 volts ensures the highest sound quality for both speakers and headphones.

Key Features:

• Advanced Control: Experience intuitive and precise adjustments with the 45mm big, aluminum volume knob.
• Speaker and Subwoofer Outputs: Connect up to three pairs of stereo speakers and a mono subwoofer, with individual switches for each pair.
• Versatile Monitoring Modes: Choose from stereo, mono, and LR SWAP for reversing the stereo image, perfect for aligning samples in video dubbing.
• Dim and Mute Functions: Quickly attenuate monitoring volume or mute speakers and headphones to protect your equipment and hearing during unexpected DAW errors.
• Optimized Headphone Amplifiers: Enjoy full, powerful headphone sound, enhanced with the Phonitor Matrix for a speaker-like listening experience.
• Multiple Inputs: Four analog stereo inputs (XLR, TRS, RCA) for connecting a variety of sources.
• Cue Mix System: Dedicated artist mix input for seamless recording sessions.
• Talkback System: High-quality condenser microphone capsule for clear communication with artists.
• Meter Output: Connect external metering systems like a stereo VU meter.
• Robust Power Supply: Adapts to all common voltages between 90V AC and 250V AC, offering more headroom with +/-18 volts internal operating voltage.

Technical Specifications:

• Analog Inputs/Outputs: XLR, TRS Jack (balanced), RCA
• Maximum Input Gain: 22.5 dBu
• Input Impedance: 20 kΩ
• Output Impedance: 75 Ω
• Frequency Range: 10 Hz – 150 kHz
• THD + N: 0.0027 % (10 Hz – 22 kHz)
• Noise Level: -94.3 dBu (A-weighted)
• Dynamic Range: 116.3 dB
• Power Consumption: 15 W
• Dimensions: 272 x 91 x 275 mm
• Unit Weight: 3 kg

The SPL MTC Mk2 stands out as a professional studio standard among monitor controllers. Its impeccable sound quality, versatile functions, and user-friendly design make it an essential tool for modern music production, catering to both mixing and mastering engineers. Whether in a professional studio or a home setup, the MTC Mk2 ensures a successful and enjoyable mixing experience.
