ART DJ PRE II Phono Preamplifier, Interface Between Your Turntable & Your Audio

ART DJ PRE II Phono Preamplifier, Interface Between Your Turntable & Your Audio Recording / Playback System DJPRE-2

BEST BUDGET PHONO PREAMP OF 2022 – Popular Science

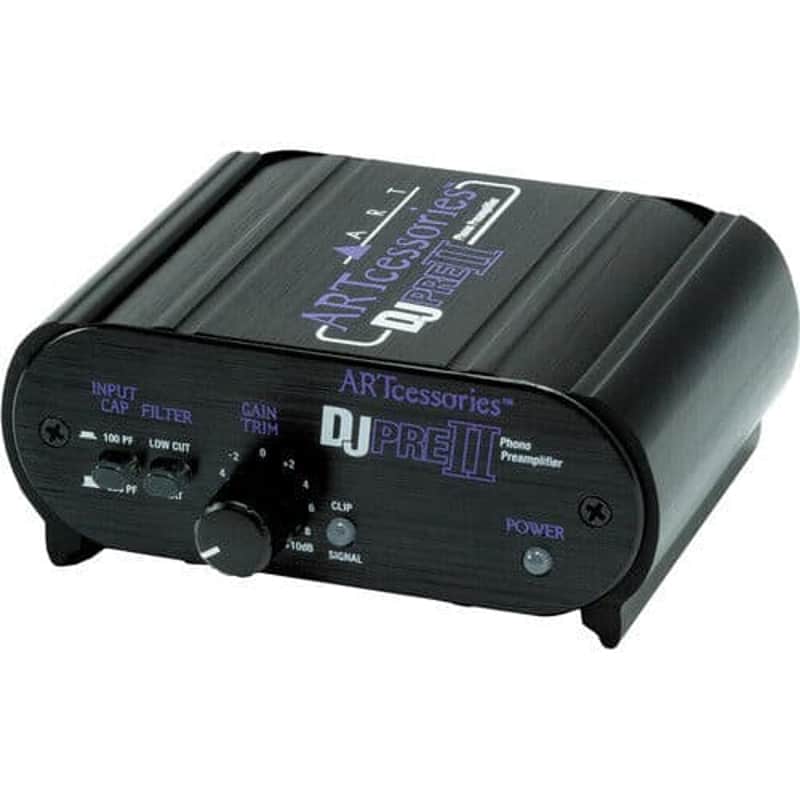

Perhaps its most exciting feature is a low-end roll-off switch that cuts some of the boominess from older distorted vinyl, or a turntable’s drive rumble, without cutting much out of the mix. On the front of the device, there’s a centrally located gain knob (up to +10 dB), with a convenient clip indicator, as well as the low-cut switch and input cap button. It’s a lot of features for such a good price.

The DJ PRE II (formerly named the “Phono MicroPRE”) acts as an interface between your turntable and your audio recording / playback system. The analog input capacitance can be switched between 100pF and 200pF to optimize your phono cartridge response. A switchable low cut filter removes turntable rumble while leaving the audio pristine. The front gain trim control and signal/clip LED allow you to optimize the preamp’s gain for a wide range of input sources. The built-in low noise phono preamp circuitry is highly accurate and precisely conforms to the RIAA standard. The line output jacks are low impedance and can be used with any sound card.

Housed in an all aluminum black anodized case, the DJ PRE II can be powered by a wide variety of external supplies. If you need to amplify and EQ your vinyl records to interface with your audio workstation, sound card, home stereo system or main monitor system, the DJ PRE II gives you flawless audio reproduction in a rugged and reliable package.

Key Features

• High accuracy / low noise preamp
• Switchable low cut rumble filter
• Variable preamp gain
• Signal present/clip indicator
• Selectable cartridge loading
• RCA preamp outputs
• Heavy duty extruded chassis
• Designed and developed in the USA

Specifications Frequency Response

• 10Hz -50KHz, +/-.5dB

Phono EQ Standard

• Conforms to RIAA Curve

Total Harmonic Distortion

• .01% Typical @ 1kHz

Hum and Noise

• > 90dB below clipping

Input Impedance

• 47k Ω in Parallel with Either 100pF or 200pF

Maximum Input Level

• 40mVrms @1kHz

Maximum Gain

• 45dB @1KHz

In / Out Connections

• RCA

Maximum Output Level

• +6dBu (1.4Vrms)

Filter Type/Response

• Switchable, Low Cut,
• -3dB @ 22Hz

Power Requirements

• 7-12V DC or 9-12V AC @150mA

Dimensions

• 1.85″H x 4.6″W x 4.5″D (47mm x 117mm x 114mm)

Weight

• 1.25 lbs (0.57kg)
