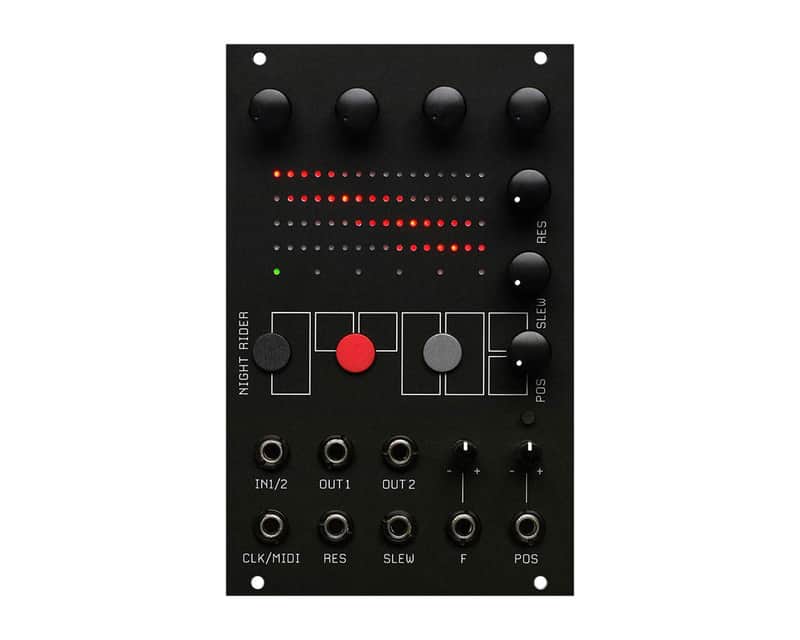

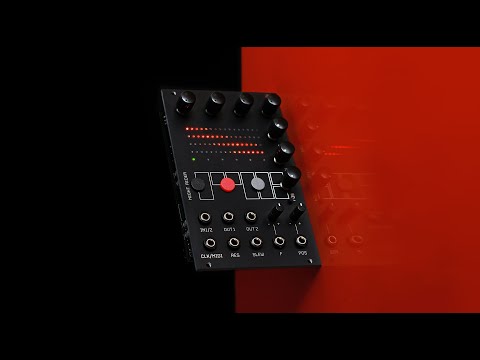

RYK Modular Night Rider

Hit the turbo boost. A six-stage, four-channel modulation sequencer hooked up to four multimode filters, each with a pingable 6dB and 12dB bandpass filter, a variable width 12dB bandpass filter, a Comb filter for Karplus Strong vibes and an All Pass filter for your regular swooshing 70s phasing.

FEATURES:

• Four filter blocks, with multiple models , including: 6db BPF [ pingable ]
• 12db BPF [ pingable ]
• 12db variable width BPF
• Comb Filter for Karplus Strom [ pluckable & flanger vibes ] All Pass filter [ crazy Phaser vibes ]
• Dual Input and Stereo output, with Pan control for each filter in the stereo field. Input can be Mono [ CH1 - 1,2,3,4 ] or Dual [ CH1-1,2 CH2 - 3,4 ]
• Modulation Sequencer capable of being clocked, scanned, and interpolated
• CV inputs for sequencer Interpolated scanning, 1V/Oct frequency offset, Slew amount,
• Resonance amount, Clock or MIDI clock input for sequence animation & MIDI CC Memory slots

• 16 HP 25 mm deep

Effect Filter DualStereo Resonator Panning PhaseShifter Digital

Specs:

• Width 16 HP
• Depth 25mm
• 52mA +12V
• 9mA -12V
• 0mA 5
