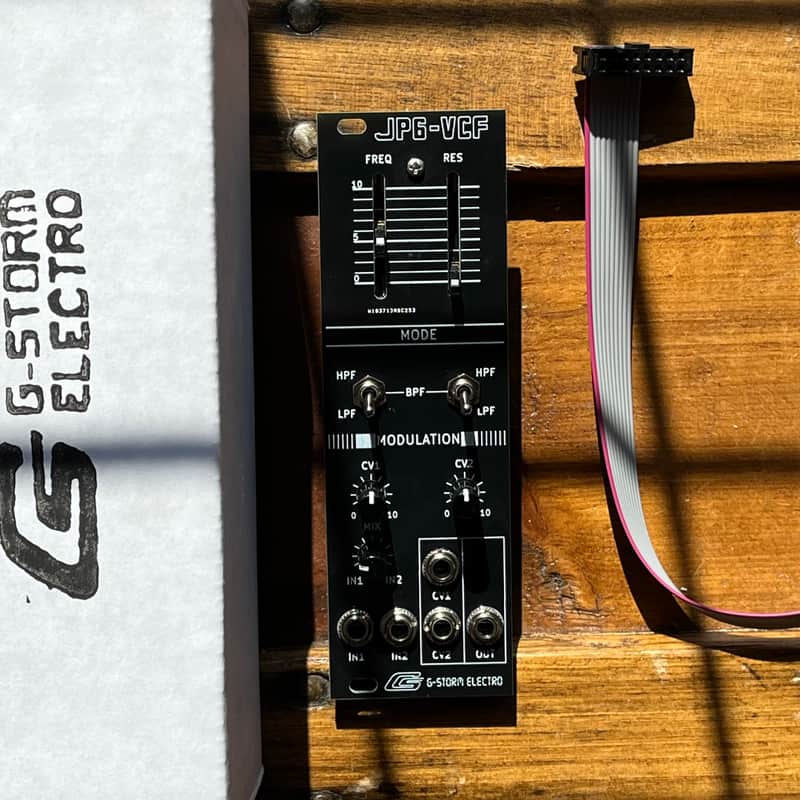

G-Storm Electro JP6-VCF - Black

Made locally in Oklahoma City. This is no emulation, this is the JP6- VCF: A faithful adaptation of the Roland Jupiter-6 synthesizer filter circuit in a slim,skiff/boat-friendly, 8HP Eurorack format module.

Great care was taken to keep the JP6-VCF fully analog circuit as close to the original as possible including thermistor frequency stabilization and two rare original OTA filter chips.

Mode switches are configured to give 4-pole LP, 4-pole HP,and 2-pole BP.

The JP6-VCF has two audio INPUT jacks with a MIX pot, and at the extremes can overdrive the filter input.

Two CV IN jacks w/ signal attenuation pots allow you to modulate frequency with any two polar/bi-polar signals, low Hz up to audio rates.

Every module is hand-assembled and ready to rock your world.

INCLUDED | 10-to-16 pin ribbon power cable.

NOT INCLUDED | M2.5 or M3 (Doepfer standard) Phillips-head basic zinc rack screws are only provided on special request. Why do I do this? To cut down on rack screws that are wasted in the universe. What's it gotta be? Thousands? Hundreds of thousands? Unused, unwanted. You know the ones I mean | wrong size, wrong color, cheap junk tin, top slot-stripping, rack-rashers, wrong thread count, wrong length, wrong political party, etc. I use thumb screws in 2 sizes myself. So yeah, if you request some M3's from me, I will probably pull the ones from other companies boxes in my closet. You're welcome :D

Specifications:
Inputs - 2 Audio Inputs, 2 CV Inputs
Outputs - 1 Mono Output
Current - 20mA +12V, 20mA -12V, 0mA +5V (not used)
Depth - 22mm

“Awesome filter!... The real deal.” – Nick, Canada

“JP-6 filter: sounds incredible - fits perfectly (12 HP =really 12 HP) - very well built.” –Eric, Belgium

“Very cool filter.” –AC, VA

“Wonderful filters. The delta and the jupiter 6 offer a resonate characteristic and quality i have not found in a few other filters i have bought. Thank you and i look forward to see what other modules you create.” –Barry, TN

“Awesome sounding filter!” –Mark, WA

“thank you for the Jupiter 6 filter again I’ve been loving it so much and I use it almost everyday! … please keep making more cool stuff :)” – Esar, GA
