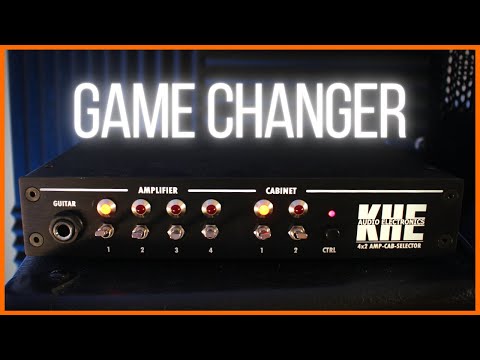

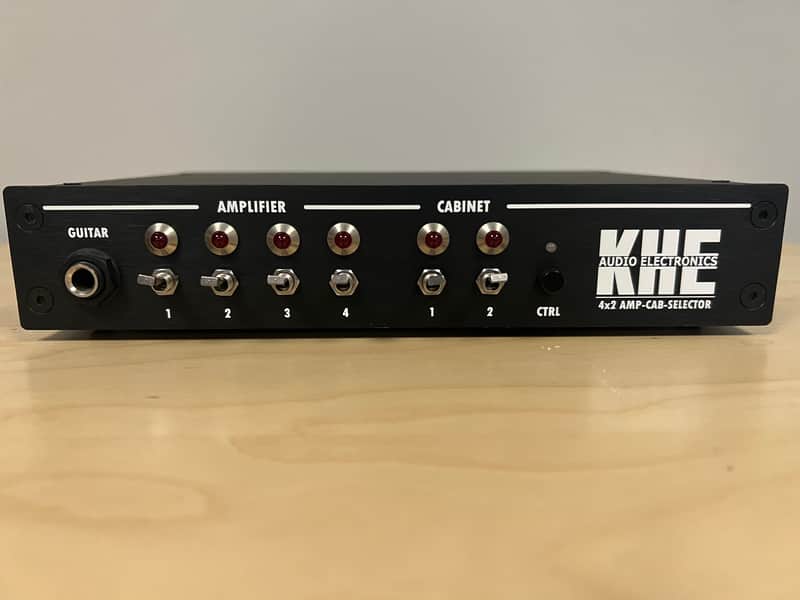

KHE Audio ACS 4x2 Amplifier Cabinet Switcher

These are killer amp switchers. I use the midi features to remotely control all switching from a Stream Deck on my recording desk.

This is in really great shape sans a couple small scuffs from racking.

No box, includes power supply.

These are $978 new before tax and VAT. Save $250 and No Waiting Here!

From the website:

The KHE ACS 4x2 enables to switch between 4 guitar amps and 2 speaker cabinets or load boxes. Switch & play any combination of amps and cabs instantly with a single push of a switch. No more moving heads around or plugging cables. Instant a/b testing and amp shootouts!

◾ Features: Dual-Cab Mode, MIDI Control

◾ One amp and up to two cabs can be active at time

◾ Compatible with heads, combos, tube- and solid state amps

◾ Amps are fully protected by load resistors and advanced safety functions

◾ No hum or noise, and no clicks or pops while switching!

◾ Steel enclosure in compact desk format (24x18x5cm)

◾ Power supply included

◾ Professional amp switcher, built in Switzerland

The KHE ACS is the most advanced guitar amp switcher on the market:

✔ Switch between any combination of guitar amps and cabs instantly, by the push of a button

✔ Switch between speaker cabinets and load boxes for silent recording

✔ Run pedals like boosts, overdrives, distortion and fuzzes in front of all amps

✔ Full MIDI control

✔ Switch while you play - no need to put amps into standby or stop playing!

✔ Works with tube & solid-state amps, speaker cabinets & load boxes, heads & combos

✔ 100% safe for tube amps: no amp can be activated without a load, amps are protected by a load resistor

FEATURES ACS 4x2

✔Amp and Cab Switching – instantly switch between 4 amps and 2 cabs. No need to put your tube amps into standby or stop playing!

✔Dual-Cab Mode - activate and play two speaker cabinets or load boxes in parallel at the same time

✔Midi Remote Control - manage your entire amp collection at your footstep by using MIDI footswitch to control the ACS

✔Tuner Output

✔Front & Rear Guitar Input

✔Gound Lift

TECHNOLOGY

Inside the ACS, a digitally controlled relay matrix switches between all amps and cabs. The switching procedure is timed and controlled by a microcontroller for fast, precise and reliable switching. A special mute circuit removes any clicks and pops during switching -the switching process is more silent than most amp’s channel switching! Advanced shielding techniques are used inside the ACS to shield the sensitive input lines from the powerful output lines.

COMPATIBILITY

The KHE ACS is compatible with all types of amplifiers and load devices, such as tube amps, solid-state amps, speaker cabinets, load boxes and power attenuators, up to 150 watts per channel. It works beautifully from sparkling clean sounds to ripping high-gain tones!

SAFETY FEATURES

✔Load Resistors - All amps are connected to a dummy load resistor to protect the power amps. All unused amps get muted at their inputs, so no signals can reach the power amp.

✔Load Detection - Cabinet jacks are supervised for a speaker cabinet or load box. If no load is connected, the cabinet outputs are automatically locked and excluded from the switching operation. This ensures amplifiers can never be activated without a real load connected.

✔No Cab? No Amp! A clever digital switching logic makes sure no invalid combination is possible: If no load is activated, you can not enable an amplifier.
