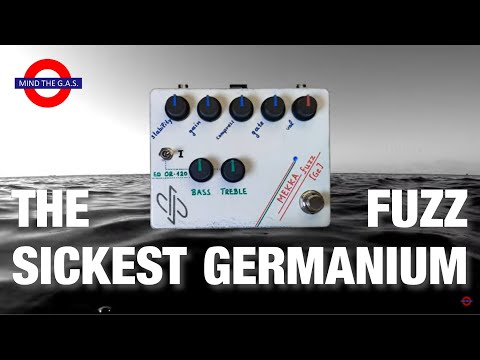

dpFX Pedals - MEKKA Germanium Fuzz with Orange OR-120 EQ

"dpFX pedals" build handmade, hand-painted pedals and custom effects (dpeffects.com)  All products are serial numbered.

MEKKA fuzz is a result of an idea a friend guitarist had for a custom fuzz pedal a while ago. With some experimentation, some changes & additions the final circuit for MEKKA fuzz was born.

The circuit is drawing elements from ‘70s Soviet fuzz circuits and contemporary fuzzes as well. At its core a couple of Soviet Germanium transistors are responsible for the gnarly sounds it can produce.

The addition of a two band Baxandall EQ same as the one used in the Orange OR120 amplifier is what adds to the pedal extra versatility, offering the ability to create countless more tonal results. The EQ can be engaged or completely bypassed with a toggle switch.

Controls:

• Stability: Keeping it fully clockwise produces the most predictable results. In any other position it will most likely start producing oscillations which are audible when you’re not hitting the strings of your instrument.
• Gain: Turning it clockwise increases the intensity of the fuzz.
• Compress: Generally it changes the way the circuit responds to your picking producing a more compressed result and also changing the attack. In combination with a low Stability setting in can create some interesting results. It also changes the tone and softness of the fuzz.
• Gate: Turning it clockwise results in a more “gated” sound and it also reduces any squeals and buzzing noises.
• Vol: Output level.

▹ True Bypass
▹ Voltage required: DC 9V
▹ Polarity: Negative tip
▹ Max Current draw: 20mA
▹ Enclosure dimensions: 120 x 95 x 35mm (4.72 x 3.74 x 1.37in)
▹ Weight: 350gr.

Note: The MEKKA fuzz in this specific form is a limited series pedal. Very few pieces will be produced since I'm not a fan of the Germanium hype.

Shipping method: 1st priority International Mail (tracked)
