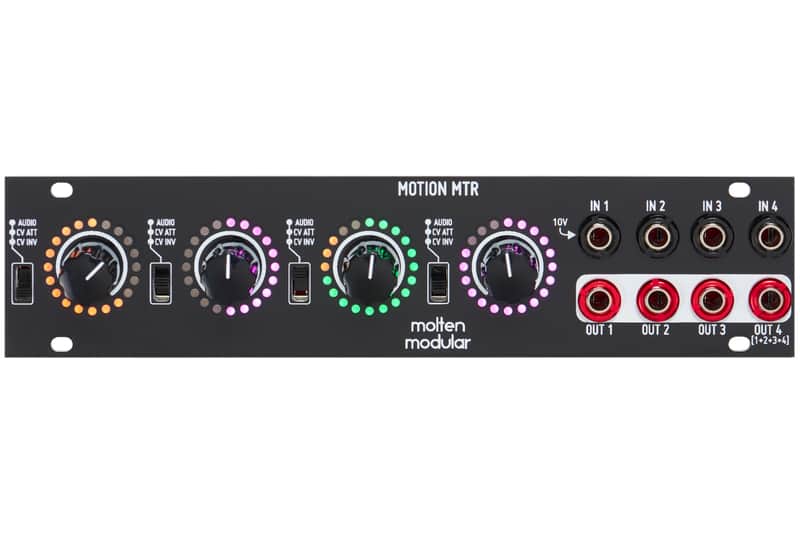

Molten Modular Motion MTR 1U

The Molten Motion Meter has gone horizontal to give you four channels of modulation visualisation, mixing and attenuation. It's a visualiser of voltage and a seer of signals. It's a VU meter and CV attenuator; it can mix and offset and looks lovely in a rack.

The Motion MTR 1U is a versatile module developed in a cooperation between Befaco and Molten Modular. Basically it offers the same functionality as the 3U module, but has an additional fourth channel.

Each channel can attenuate, invert or simply visualize audio or control voltages. Thus it is a quad attenuverter and VU meter, or can be a combination of everything through creative patching. In addition, the channels are normalized.

Motion MTR 1U can generate voltages of 10V, so it is also an offset generator. With Motion-MTR 1U, any Eurorack system gets a powerful utility module that always gives clear visual feedback.

Features:

• - Audio level control with VU meter


• - CV attenuator with voltage indicator


• - CV inverter with voltage indicator


• - 10V voltage generator (offset)


• - Channel 1, 2 and 3 are normalized to 4 (mix function)

HE: 1 TE: 34 Depth: 30 Power consumption +12V: 110 Power consumption -12V: 30
