The Friedman IR-X dual-channel tube preamp is an entire Friedman rig in a compact pedalboard-friendly package. Powered by two high-voltage 12AX7 preamp tubes, each channel delivers the harmonic richness and touch response of Dave Friedman’s finest designs. DSP IR cabinet/power amp simulation sends a studio-quality mic’d-up tone to your DAW or Front-of-House. The IRX provides easy-to-use controls without complex menus and 100-page manuals.

Product Features

• All-tube HIGH-VOLTAGE preamp – DI

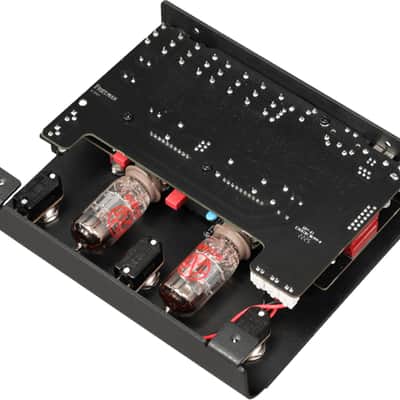

• 2 x 12AX7 preamp tubes
• Two independent channels + boost
• Channel 1 (Top channel) clean to gritty
• Channel 2 (Bottom channel) high gain drive
• MIDI programmable features: Channel select / Boost, IR select, Thump and Presence – three-way switch per channel, Effects loop ON/OFF, Boost Lock
• Power amp simulation with software editable Presence and Thump (per channel)
• Low latency Impulse Response cabinet simulation (bypassable)
• Three position CAB/IR select switch per channel (programmable via software)
• 12 free Friedman IRs or load your own
• Boost Volume and Gain controls (per channel)
• Volume and Gain controls (per channel)
• Full EQ consisting of Bass, Middle, Treble (per channel)
• 3-way Bright switch (Channel 1)
• 2-way Tight switch (Channel 2)
• Three multi-function foot switches
• Ultra-transparent series FX loop (bypassable)
• TRS balanced output
• Headphone output
• MIDI 5 pin standard connector and USB MIDI
• USB software editor – powered by SYNERGY
• Limited 3-year Warranty
• Universal 12V Power Supply Included
• 6 Foot USB2.0 A Male to B Male cable Included

Attributes

• Color: Black

Technical Specifications

• Features: Power Supply Included
• Dimensions: 2.3" H x 6.5" W x 5.5" D
• Weight: 1.5 lbs
• EQ: 3-Band EQ
• Inputs: 2 x 1/4" Instrument, FX Return
• Outputs: 2 x 1/4" Output, FX Send
• MIDI: In
• Power Source: 9-12V DC 800mA power supply (included)
• USB: 1 x Type B (MIDI, updates, remote programming)
• Effects: Preamp, DI, Boost
• Processing Type: Hybrid
• Software: IR-X Software Editor
