Furman AR-2306 Power Conditioning Rack AR 2306 Conditioner AC Line Voltage Regulators Rackmount Surge Stabilizer Protection

Rare 90s Furman AR230 Power Conditioning

AC Line Voltage Regulator (11 output inlets)

Condition: used, but tested.. working properly

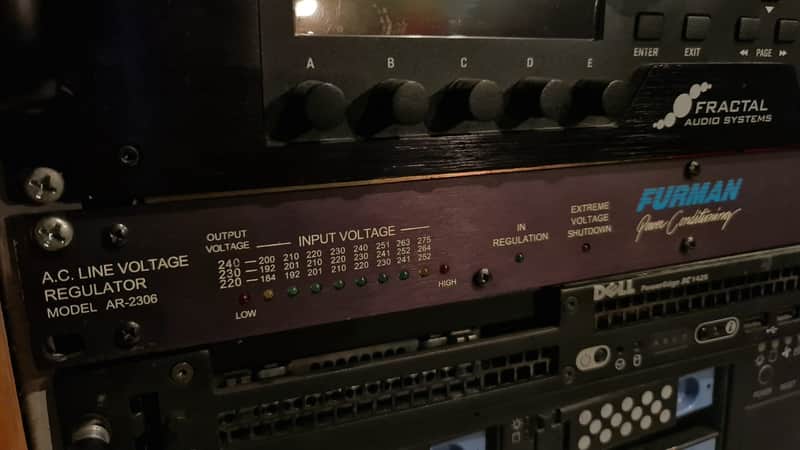

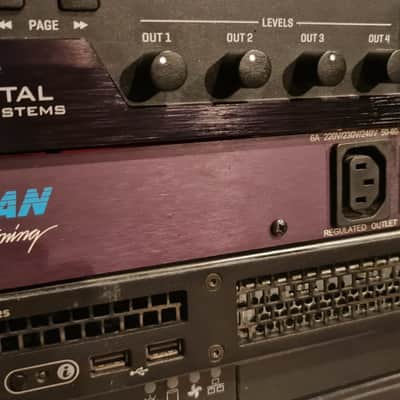

Furman AR2306, 230 volt, 6 Amp regulator, This 1U unit has one front and ten rear IEC outlets, and an output voltmeter. Output can be set to 220, 230 or 240 volts.

Furman AC Voltage regulators, In some locations and conditions, the mains power supply can vary to a surprising extent. Because a lot of electronic equipment is optimised to operate at a specific voltage, incoming voltage variation can compromise performance, shorten the life and cause damage to equipment. These voltage regulators provide a stable output voltage (+/- 5%) from an incoming supply that can vary between 190 and 288 volts. They also incorporate advanced filtering and surge protection circuitry which further enhances equipment performance. Whereas the Furman AR2306 and Furman AR2330 can be set to give a 220, 230 or 240v regulated source, the Furman AR-PRO is designed to give 120v from virtually normal mains voltage around the globe. This makes the AR-PRO particularly useful for US equipment that is used abroad; ensuing that equipment designed for U.S. or other 120v supply is correctly and safely powered.

Some terms frequently used in our industry:

Protection stops mains pulses and spikes. Furman’s advanced Series Mode Protection circuit (SMP+) safely uses surge-absorbing components to dissipate even extreme spikes, instead of ‘blowing’ like most other designs.

Extreme Voltage Shutdown (EVS)

protects equipment by shutting down outlet supply if the mains voltage becomes dangerously high. Furman’s EVS resets automatically when voltage levels stabilise.

Uninterruptible Power Supply (UPS)

Seamlessly switches to a back-up power source, offering immunity against power dips and failures - giving time to safely power-down valuable kit and to back up data.
