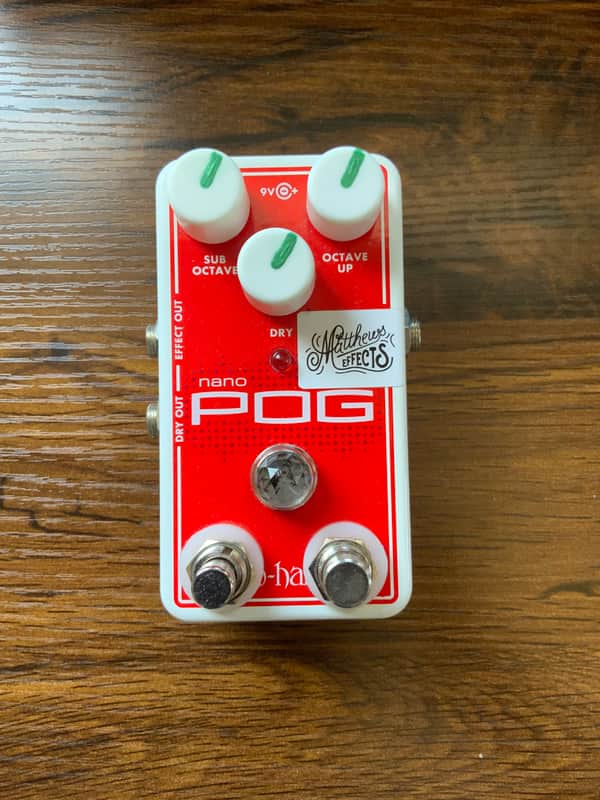

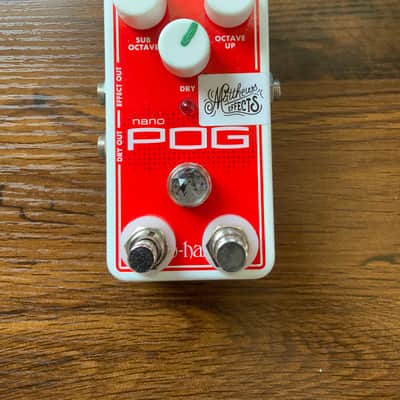

Electro-Harmonix Nano POG Matthews Effects MIDI modded
This gear has sold
See similar gear from other Reverb sellers
Our users rate Reverb

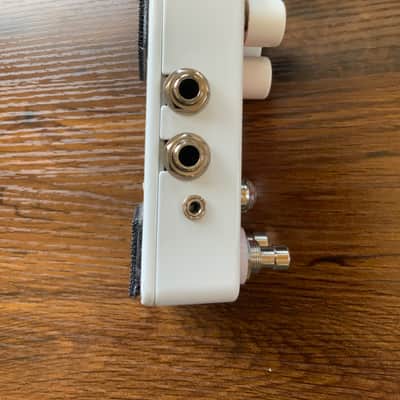

Electro-Harmonix Matthews effects MIDI Modded Nano Pog. 3.5mm jack for MIDI. Ugly green paint included on knobs for free from previous owner. Power supply included.
PRESETS
The POG Mod gives you 3 presets you can access with the provided “Preset Select” footswitch. By connecting a MIDI controller to the MIDI In jack you access all 30 of the internal presets giving you the maximum options for playing.
Comes with the box and power cord.
MIDI FEATURES
PC messages: use PC messages to access all 30 presets! Simply send a pc message with the correct midi channel and the pog mod will jump to that preset!
CC messages: send CC messages to dynamically adjust the values of the controls!
CC0 – Dry
CC1 – Oct down
CC2 – Oct up
HOW TO PROGRAM A PRESET
Press and hold the preset switch to enter program mode. Your POG will either wait for a pc message from a external MIDI controller to program the corresponding preset (4-30) or another press from the preset switch will program either the red (Preset 1), green (Preset 2) or Yellow (Preset 3), which ever one is currently active. Preset 1 (red) will be programmed by default if the currently active preset is neither red, yellow, or green.
HOW TO CHANGE ITS MIDI CHANNEL
The pog will default to MIDI channel 1 but if you want to change its channel simply send a pc message between 101-116. (101 = 1, 102 = 2, etc) and this will update the units MIDI channel.
