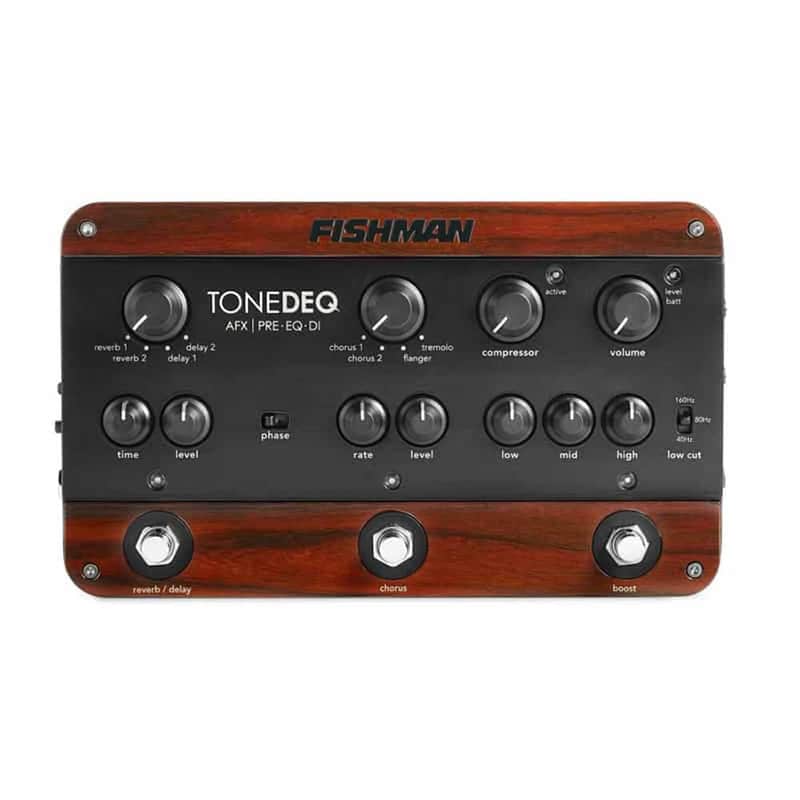

The ToneDEQ Preamp EQ Multi-effects is a complete performance solution for the acoustic musician. With a high-quality preamp, dual effects section, tone controls, a compressor, level booster and a balanced D.I. — it’s got everything you need in one box.

FEATURES

Pure Analog Circuitry

The ToneDEQ analog signal path goes from end to end — from preamp to output — to give acoustic musicians a richer tonal quality. Even the digital effects are mixed in parallel so they don’t affect the purity of your acoustic instrument.

Multi-effects

The ToneDEQ offers two separate effects sections: “reverb/delay” with 2 reverbs, 2 delays, time and level controls, and “chorus” with 2 chorus settings, one flanger, and one tremelo. There is also an onboard compressor.

Fully Balanced Stage D.I.

Flexible outputs include a 1/4″ amplifier output and XLR D.I. output for the lowest noise possible. Plus the D.I. features automatic ground-lifting and selectable pre/post EQ settings.

Discrete Class-A Preamp

With Fishman, you get quality discrete class-A signal conditioning created by the leader in instrument preamp design. The high-impedance input is a must when using a passive instrument pickup.

Advanced 4-Band EQ

Legendary 4-band equalizer design provides superior tone control for any acoustic instrument. The variable low-cut filter controls sub-bass effects produced by some passive pickups.

SPECIFICATIONS

INPUT:  10M Ohm, discrete class-A JFET design

AUDIO:  All-analog signal path with parallel digital effects

TONE CONTROL:  4-band EQ with Bass, Middle, Treble, and selectable Low Cut

DUAL EFFECTS:  Reverb (2) or Delay (2), Chorus (2), Flanger or Tremolo

DYNAMICS:  Soft-knee Compressor, Boost footswitch (up to 9dB)

FEEDBACK CONTROL:  Selectable Phase invert

AUDIO I/O:  1/4” mono instrument input, 1/4” amplifier output, balanced XLR D.I. output with pre/post routing

DIMENSIONS:  5.36” L x 9.5” W x 2.2” H (136 mm) (241 mm) (56 mm)

WEIGHT:  2.5 lbs (1.1 kg)

BATTERY

Powered by 9-volt battery (not included), or Fishman 910-R power adapter (optional) BATTERY LIFE 12 hours
