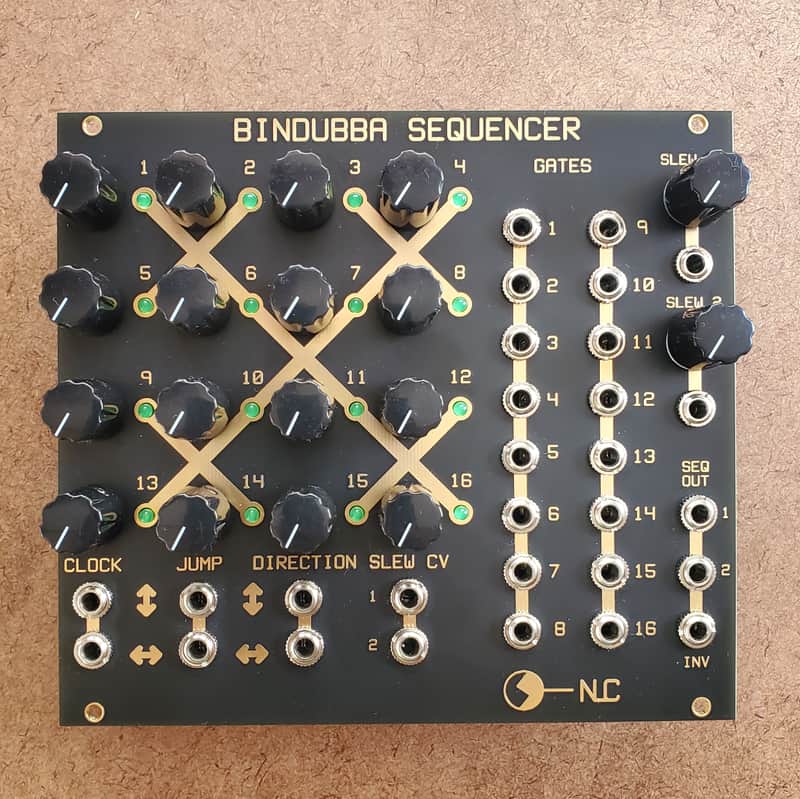

NLC Nonlinear Circuits Bindubba

NLC Bindubba

• 28 hp, Black Panel

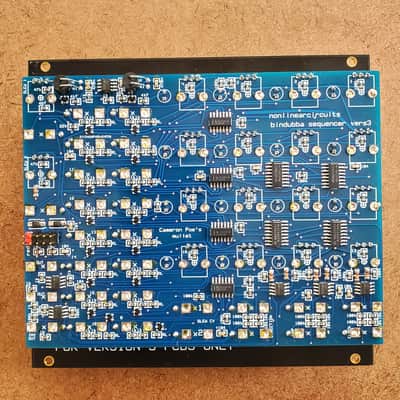

• Fresh build, tested and fully functional
• Reverse power protection installed, comes with power cable
• Built with highest quality WQP-518MA jacks (20k+cycles)


Further information from nonlinearcircuits:

This is a re-boot of the Bindubba3 sequencer, tho there have been a few changes. It is designed to be used with the Divide & Conquer.

This sequencer has 6 inputs to control the stepping. Two clock inputs control the count in horizontal and vertical directions. The two jump inputs send the next step somewhere else that depends on the 2^2 and 2^3 counts of the chips of both step directions……ie somewhat uncontrollable but it enables more complex patterns to be created. The two direction inputs change the direction of the count.

There are two voltage controlled slewed outputs, two CV outputs giving the same CV, 1 inverted CV output and 16 gate outputs.
