Lusithand Devices Single NFP Special. Wal style filter preamp

IMMEDIATE SAME DAY SHIPPING

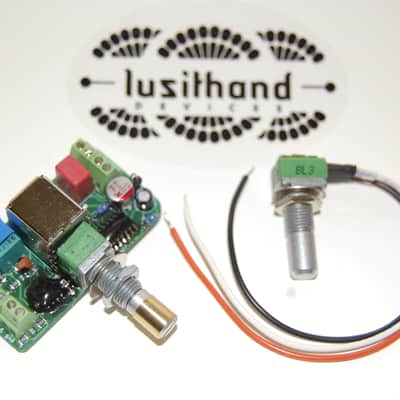

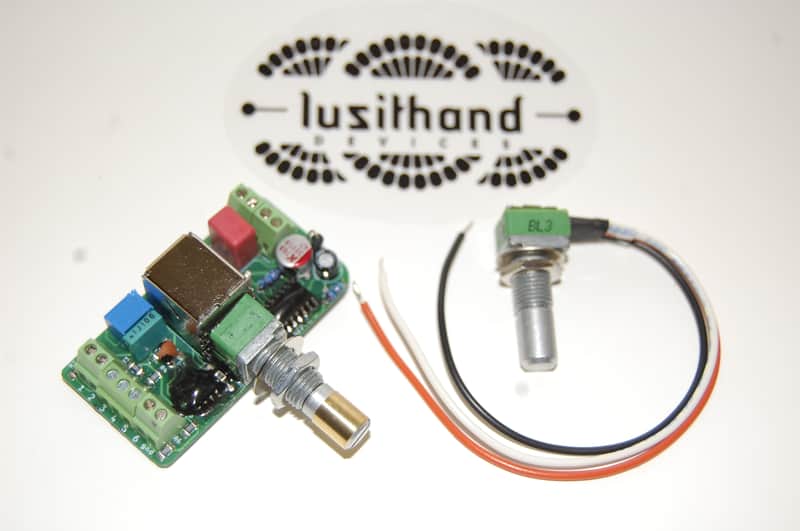

Lusithand Devices Single NFP Special, Wal style bass active onboard preamp filter.

The NFP-Special preamp is an evolution of the NFP but designed specifically for Multicoil pickups that benefit from a "one humbucker per string" type of wiring. Each string has it's own humbucker which get electronically combined for maximum pickup performance and string isolation. This method of electronically mixing the coils brings maximum output, clarity and punch out of the pickups without any adverse loading effects. The pickup then goes through the tonal enhancer part of the circuit, the NFP, where the filter preamp works its magic.

This pickup/preamp combination is very similar to the Wal Mk series and you can expect to find very similar and tasty tones. The Sweepable frequency has a resonant peak that ranges between 170hz and 4 khz that can be boosted by pulling-up on the potentiometer.

The NFP-Special can run from 9 to 27 volts and it has a current draw of +- 2.5 mAh. It provides 6x inputs so that you can wire any multicoil pickup up to 6 strings. A volume control is included, but not shown in photo.

Board Dimensions: W: 4,3 cm; H: 2,5 cm; D: 1,8 cm Potentiometers: Holes are 6.35mm W and Bush Height 10mm

For more Lusithand Devices high end products, click on "View more from this shop" also check out YouTube for lots of videos.

Latest nice video demo by Public Peace on YouTube.

Check out my other quality listings.
