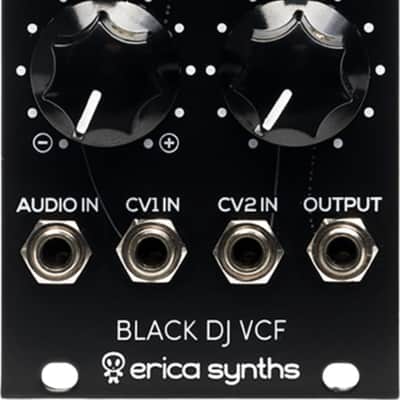

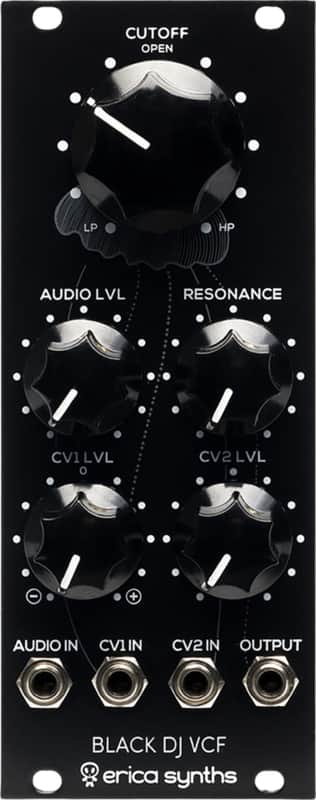

As its name suggests, the Erica Synths Black DJ VCF provides sound treatment functionality typically found on DJ decks – it is fully open when the cutoff knob is set to 12:00. When turned counter-clockwise, lowpass filtering is applied and when turned clockwise, highpass filtering is applied. The filter also has a nice-sounding resonance parameter. This module provides hands-on control over the sound during the performance, as well as unconventional timbre modulations that are hard to achieve with conventional state variable filters. The Black DJ VCF is a fully analogue design and consists of two VCFs – highpass and lowpass in series and the filter management is done by complex CV routing.

Product Features

• Fully analogue DJ-style VCF
• Manual resonance control
• Cutoff CV attenuverter and attenuator
• Input and output
• Protection against undesired overvoltage
• Depth: 1.38"
• Power consumption: +55mA, -58mA

Attributes

• Color: Black

Technical Specifications

• Type: Synth Module
• Inputs: 1 x 1/8"
• Outputs: 1 x 1/8"
• Processing Type: Analog
• Power Supply: Requires Eurorack case and power supply
• HP Size: 10HP
