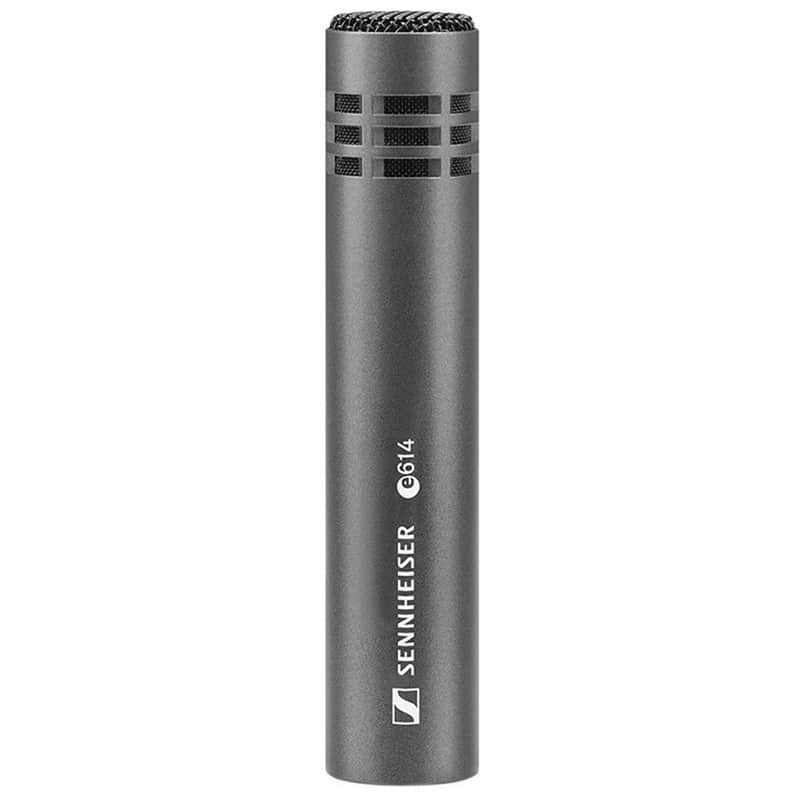

The Sennheiser e614 is a supercardioid back-electret condenser microphone. The e814 mic was designed for demanding instrument recordings that require extended frequency response, high SPL, fast transient response and compact mic size. While percussion pick-up was the first design priority, the e614 also works exceptionally well on woodwind and string instruments, and is a good choice for flute and sax where it captures the full body of the instrument. The e614 can handle high SPLs and features a medium sensitivity, which ensures reduced bleed from other instruments onstage. Because of its excellent acoustic properties this mic is also ideal for home recording.

Designed for demanding applications where extended frequency range, high SPL, fast transient response and small size are required. Captures the "air" and the body of the instrument. Nearly flat response from 40Hz to 20kHz and a super cardioid pattern. Includes pouch and mic clip.

Features

• 40-20,000 Hz
• Designed for demanding applications where extended frequency range, high SPL handling, fast transient response and small size are required
• Captures the shimmer and the contact of sticks, mallets and hands
• Nearly flat response from 40 Hz to 20 kHz and a supercardioid pattern

Specifications

• Dimensions: Ø 20mm, L = 100mm
• Connector: XLR-3
• Frequency response: 40 - 20000 Hz
• Transducer principle: Pre-polarised condenser microphone
• Weight: Without cable: 73 g
• Pick-up pattern: Super-cardioid
• Sensitivity in free field, no load (1kHz): 3 mV/Pa = - 50dB (0 dB = 1 V/Pa)
• Nominal impedance: 50 Ω
• Min. terminating impedance: 1000 Ω
• Phantom powering: 12 – 52 V / 3 mA
• Equivalent noise level: 24 dB(A)
• Equivalent noise level weighted as per CCIR: 35 dB
• Maximum sound pressure level (passive): 139 dB/SPL

What's in the box?

• e 614
• Microphone pouch
• Microphone clip MZQ 100
