-SUPER-CLEAN & 100% complete in-box system!! ~check feedback and BUY WITH CONFIDENCE!!

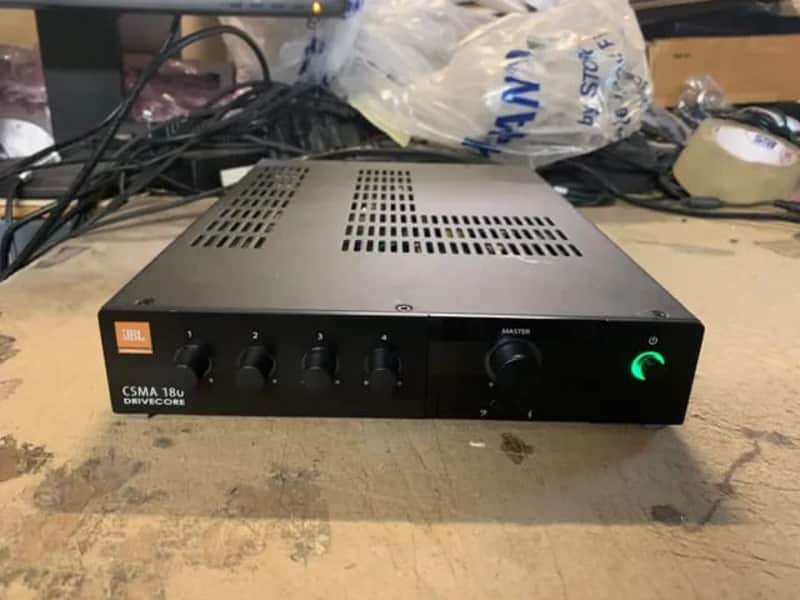

JBL CSMA 180

4-input commercial mixer/amplifier — 80W x 1 at 70V

What's in the box:

• CSMA 180 mixer/amplifier
• 6' AC power cord (IEC 3-prong)
• 2 Front angle brackets
• Long angle bracket (8-1/2" length)
• Flat bracket (5" length)
• Rear angle bracket (7-7/8" length)
• Rear flat bracket (4-3/4" length)
• Five M5 x 18mm screws (with flat washers)
• Three M5 x 10mm screws
• 3 Split lock washers
• 3 Flat washers
• Eight M3 x 6mm flathead screws
• Eight M3 x 8mm panhead screws (with split lock and flat washers)
• 4 Self-adhesive rubber feet
• 4 Euroblock connectors (3 conductors)
• 2 Euroblock connectors (5 conductors)
• Operation Manual

Product highlights:

• amplified mixer for commercial audio distribution features 4 input channels and one 80-watt output channel
• supports 70-volt and 100-volt distributed audio systems without the need for a separate transformer
• stable from 4-16 ohms
• uses Crown's high-efficiency DriveCore™ technology to provide excellent audio performance
• independent bass and treble controls
• dip switches for input routing, phantom power, and 70/100V operation
• illuminated rings around buttons and dials for easy operation in darkened environments
• fanless, space-saving single half-width rack space (1U) design
• rack mounting kit included
• Energy Star® certified

Inputs and Outputs:

• RJ-45 connector for use with an in-wall volume control (not included)
• single 5-pin Euro-block Priority input connector with vocal override for announcements
• three 3-pin Euro-block connectors with line/mic input switch for balanced input sources
• three RCA input connectors sum unbalanced stereo inputs to mono
• 3-pin auxiliary line level output connector for each output channel
• single 5-pin Euro-block main output compatible with low impedance or constant voltage systems
• unwired Euro-block connectors are included
