Overview

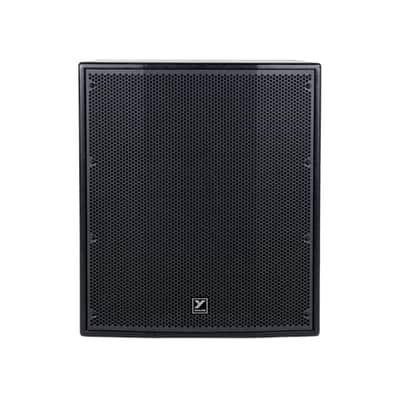

The YXL18SP powered subwoofer can be used with any full-range cabinet. Yorkville Sound's YXL line includes options for 10, 12 and 15-inch full-range speakers.

Features

• 1000 watts (peak) 500 watts (program)
• Superior DSP processing with component protection
• 18-inch woofer with 3-inch voice coil
• Recessed control panel
• Master Level control with Activity indicator (cabinet level adjustment)
• 3 Performance modes, Punch, Smooth and Deep
• 2 x XLR/ 1/4-inch Combi Inputs
• 2 x XLR Link outputs
• 12mm plywood, latex paint
• Tough, full-length metal grille

Specifications System Type Powered Sub Woofer Active or Passive Active Power Rating (Watts) 500 Watts Program (1000 Watts Peak) Max SPL (dB) 130dB Peak Frequency Response (Hz +/- 3dB) 40 - 100 (Hz +/-3dB) LF Driver(s) 18-inch (3-inch voice coil) LF Power Rating(Watts) 500 Watts Program (1000 Watts Peak) LF Amplifier Type Class D Cooling Scheme Speed controlled fan Power Cable Yes Power Switch Yes Inputs 2 x Main IN XLR Female/ 1/4" Combi, 2 x LINK XLR Male Level Controls Master EQ Controls Push button select, Punch, Smooth, Deep Limiter Multiband excursion, RMS, Rail Feet Rubber Bar Handles 2 x Side Enclosure Materials 12mm Plywood, Metal grille Grille Powder Coated Steel with Grille Cloth Other Details Rubber feet on bottom and side with the monitor wedge Dimensions (DWH xbackW, inches) 24.75 x 21.75 x 25.5 Dimensions (DWH xbackW, cm) 63 x 53 x 65 Weight (lbs/kg) 78/35.4

Specifications subject to change without notice
