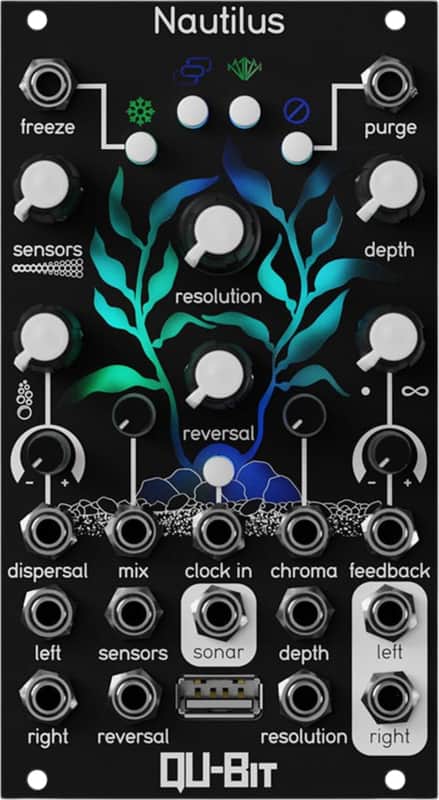

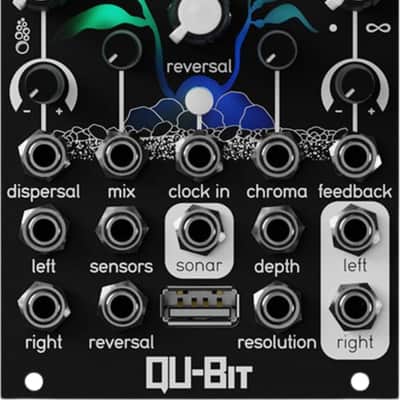

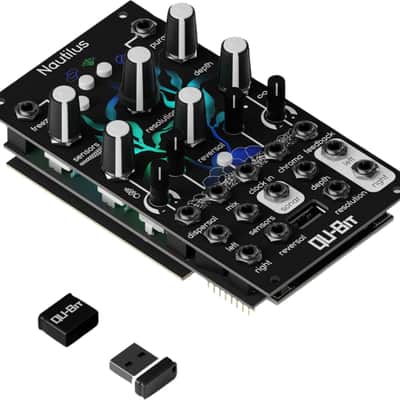

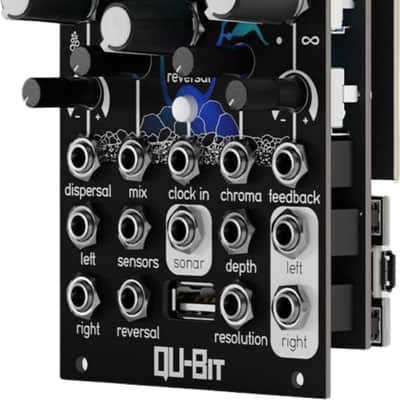

Qu-Bit Nautilus Sub-Nautical Delay Network Eurorack Synth Module

Nautilus is a complex delay network inspired by sub-nautical communications and their interaction with the environment. In essence, Nautilus is a stereo delay consisting of 8 unique delay lines which can be connected and synced in interesting ways. Each time Nautilus pings its sonar system, the generated topography reveals itself through the delay, all while staying in time with the internal or external clock. Complex feedback interactions plunge sounds to new depths, while related delay lines pull fragments of sound in different directions. Manipulate the delay lines even further by configuring the the stereo receptors, sonar frequencies, and aquatic materials that filter the space between Nautilus and its surroundings. Though Nautilus is a delay effect at heart, it is also a CV/Gate generator. The Sonar Output creates either a unique Gate signal, or a unique CV signal algorithmically generated from Nautilus’s findings. Drive other parts of your patch with pings from the delay network, or use the generated topography as a modulation source. From the deep ocean trenches, to shimmering tropical reefs, Nautilus is the ultimate exploratory delay network.

Product Features

• Stereo Sub-Nautical Delay Processor
• Ultra low noise floor
• 8 codependent delay lines with up to 20 seconds of audio each
• Fade, Doppler and Shimmer delay modes
• Sonar configurable CV/Gate output
• Depth: .87"
• Power Consumption: +12V=151mA, -12V=15mA, +5V=0mA

Attributes

• Color: Black

Technical Specifications

• Type: Synth Module
• USB: 1 x USB
• Power Supply: Requires Eurorack case and power supply
• HP Size: 14HP
