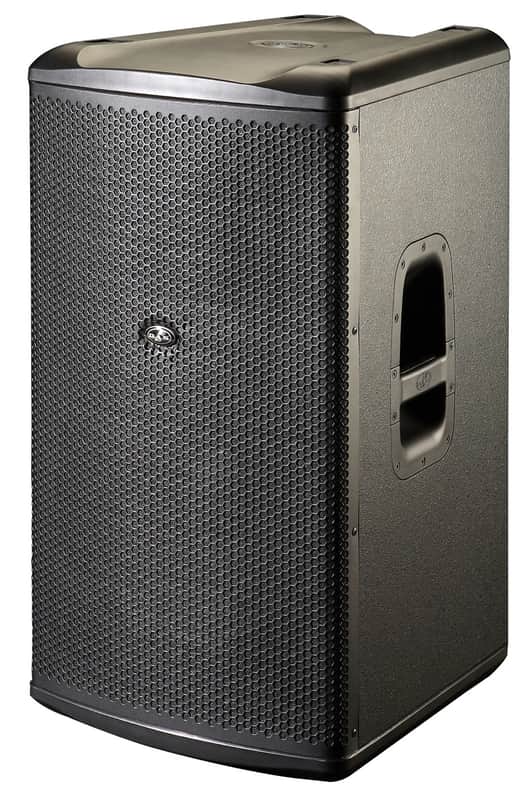

D.A.S. Audio AVANT-15A Active Speaker

 ​Overview

The Avant series incorporates an impressive battery of high tech features that take powered portable systems to a new level of performance. The latest in Class D power amplification, digital signal processing and optimized D.A.S. components have been combined with enclosures designed for ease of transportation and road worthiness. The 600 W Class D amplifier provides extended bandwith, improved dynamic range and exceptionally low distortion. This makes the Avant series one of the best sounding systems on the market. After all, isn't quality sound what it's all about? The Digital Signal Processing (DSP) incorporated in the Avant series provides unparalleled control over the audio signal. Critical parameters have been fine tuned for each cabinet, yet their consistent sound "signature" allows them to perform seamlessly with other systems from the Avant family. The 15AV4 loudspeaker designed and built by D.A.S. provides powerful low frequency reproduction. High frequencies are handled by the M-50N compression driver which uses a neodymium magnet structure and 2" titanium diaphragm for exceptional performance in all types of applications.

Features - Compact full-range system - Ultra lightweight 3rd generation Class D amplifier - Switch-mode power supply - Reduced size and weight - Pole mount socket - Rigging points

Technical Data

• Nominal LF Amplifier Power 500 W
• Nominal HF Amplifier Power 100 W
• Frequency Range (-10 dB) 45 Hz-20 kHz (EQ Flat)
• Rated Peak SPL at 1 m 133 dB
• Dispersion 80Ì__H x 50Ì__V rotatable horn
• Enclosure Material Plywood
• Color/Finish Black/Paint
• Connectors Input: Female XLR-Jack combo, Loop Thru: XLR, AC Input Male IEC
• AC Requirements 115 V, 50/60 Hz
• 230 V, 50/60 Hz
• Current Draw (1/3 power @ 230 V) 1.7 A
• Dimensions (H x W x D) 83 x 44.8 x 47.6 cm, 32.7 x 17.6 x 18.7 in
• Weight 30 kg (66 lb)
