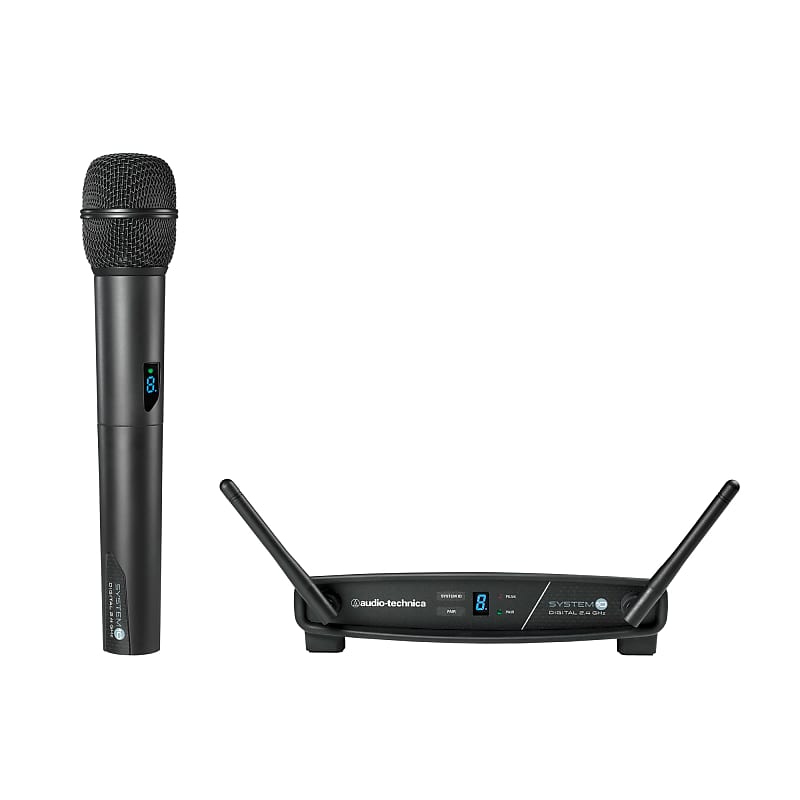

Audio-Technica System 10 ATW-1102 Wireless Handheld Microphone System

Overall System

Operating Frequencies 2.4 GHz ISM band (2400 to 2483.5 MHz)

Frequency Response 20 Hz to 20 kHz

Depending on microphone type

Operating Range 30 m (100') typical

Open range environment with no interfering signals

Total Harmonic Distortion <0.05% typical

Operating Temperature Range 0° C to +40° C (32° F to 104° F)

Battery performance may be reduced at very low temperatures

Handheld Transmitter

RF Power Output 10 mW

Spurious Emissions Following federal and national regulations

Battery Type Two 1.5V AA

not included

Battery Life >7 hours (alkaline)

Depending on battery type and use pattern

Dimensions 254.8 mm (10.03") long,

50.0 mm (1.97") diameter

Net Weight 280 grams (9.9 oz)

without batteries

Accessories Included AT8456a Quiet-Flex™ stand clamp

Body Pack

RF Power Output 10 mW

Battery Life >7 hours (alkaline)

Depending on battery type and use pattern

Battery Type Two 1.5V AA

not included

Dimensions 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D

Input Connections Four-pin Locking Connector

Pin 1: GND, Pin 2: INST INPUT,

Pin 3: MIC INPUT, Pin 4: DC BIAS +9V

Net Weight 100 grams (3.5 oz)

without batteries

Spurious Emissions Following federal and national regulations

Receiver

Receiving System Diversity (frequency/time/space)

Maximum Output Level XLR, balanced: 0 dBV

1/4" (6.3 mm), unbalanced: +6 dBV

Power Supply 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply

Operating Temperature Range 40° F (4° C) to 110° F (43° C)

Dimensions 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D

Weight 290 grams (10.2 oz)

Accessories Included Power supply
