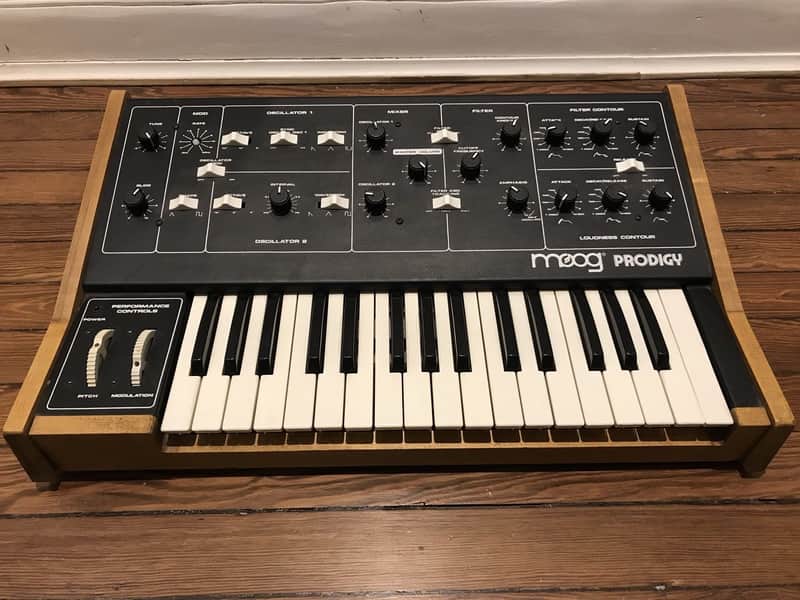

The Moog Prodigy was a monophonic analogue synthesizer produced by Moog Music from 1979 to 1984. Of the 11,000 produced, versions released after 1981 included a control voltage/gate input on the back that allowed the VCF to be triggered and controlled by an external source. These later versions began at serial number 4610. The official model number of the instrument is 336. 336A would indicate a domestic (US) model, while a 336BX would indicate an export unit.

The housing is all metal except for the wooden side panels. The power supply is inside the instrument and the mains cable is detachable.

The Prodigy featured two Voltage Controlled Oscillators (VCOs), one with a sawtooth waveform, a trianglewaveform, and a pulse waveform, the second with a sawtooth, a triangle, and a square waveform. These waveforms could be detuned up or down by more than a fifth, allowing for the creation of thick pads as well as atonal sounds. The two oscillators could be synchronized as well, then altered using the pitch wheel (in sync mode, the pitch wheel would alter the tonality of the sound, not the pitch. Roaring synth leads were made possible using this feature.) The Prodigy did not feature a white noise or pink noise generator.

The voltage controlled 4-pole low-pass filter uses the typical Moog transistor ladder filter design. There is a dedicated 3-stage ADR envelope controller (ADR short for Attack Decay Release).

The Prodigy was capable of a full range of synthetic sounds, from a gentle whistle or flute in the upper ranges, to sub-sonic bass. The voltage controlled amplifier (VCA) was controllable only via a second 3-stage ADR envelope controller.

The low frequency oscillator (LFO) of the Prodigy featured a triangle and square waveform, which could be routed to the VCO or VCF to create pitch or filter modulation effects.

WORK DONE

- Calibrated to factory spec

-Keyboard contact

-Alim has been reccaped !

FEEL FREE TO CONTACT US FOR MORE DETAILS AND PHOTOS/VIDEOS

💯Your advantages:
  ✅ Worldwide insured shipping
  ✅ All necessary export papers for foreign countries
  ✅ Fast processing
  ✅ Tested & cleaned devices
  ✅ Secure payment
  ✅ Animal-free and non-smoking household

📦SECURE PACKAGING

 It is very important to us that you as a customer are satisfied, and that your ordered instrument is intact and in top condition arrives at you. We attach great importance to safe packaging because you never know how the parcel delivery service will handle the parcel. For this reason, we pack every instrument in a very safe way so that everything arrives undamaged and we are both satisfied.

We are a new company here, but experienced Synthetisers, Computer-Assisted-Music and Digital Pianos seller already.
