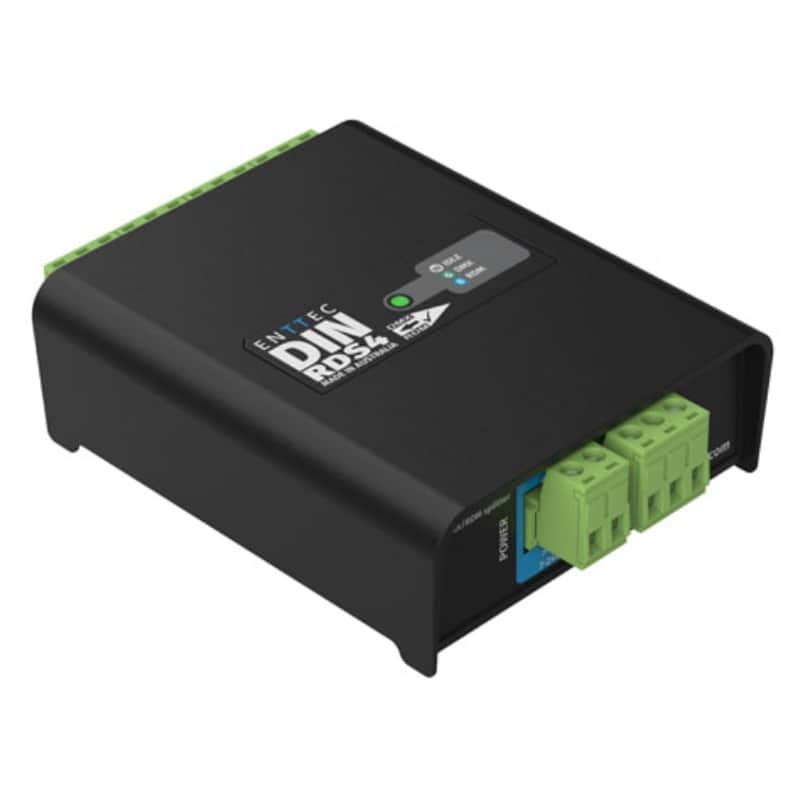

Enttec DIN RDS4 mk2 72004 4 Port DMX / RDM DIN Rail Isolated Splitter Black

Enttec;Din RDS4 Mk2 72004 DMX / RDM Splitter DIN RDS 4 is the new installation
grade 4port DMX/RDM splitter in a compact, 4module DINrail form
factor.ENTTEC’s DIN RDS4 is an installation grade, 4port, DMX/RDM isolated
splitter engineered to take any architectural, commercial, or entertainment
project to the next level.Use the DIN RDS4 to turn one DMX feed into four and
eliminate the need to create long and complex DMX chains. Instead, each port
becomes the beginning of a new chain. Multiple RDS4s can be chained together
to create as many outputs as you need.The DIN RDS4 requires no configuration
and is packed with installerfriendly features including a flexible 724v DC
power input range and removable terminal plugs for simple wiring. To top
things off, it’s all housed within a compact, electrically insulated form
factor with flexible mounting options. 1 DMX/RDM input 4 DMX/RDM outputs.
1500V Optoisolation between each DMX port to protect against stray voltages on
the DMX line. Pluggable screw terminal connectors. Forwardfacing LED status
indicator to view current DMX/RDM traffic. Support for DMX512A and ANSI E1.20
RDM. Output refresh rate mimics the input. Electrically insulated case
material. Surface or TS35 DIN rail mount. No configuration required. 7V24V DC
power input. 20DegreeC to 50DegreeC (4DegreeF to 122DegreeF) operating
temperature. ; Features: Small yet powerful Flexible mounting options Protect
your fixtures Monitor activity 3year
