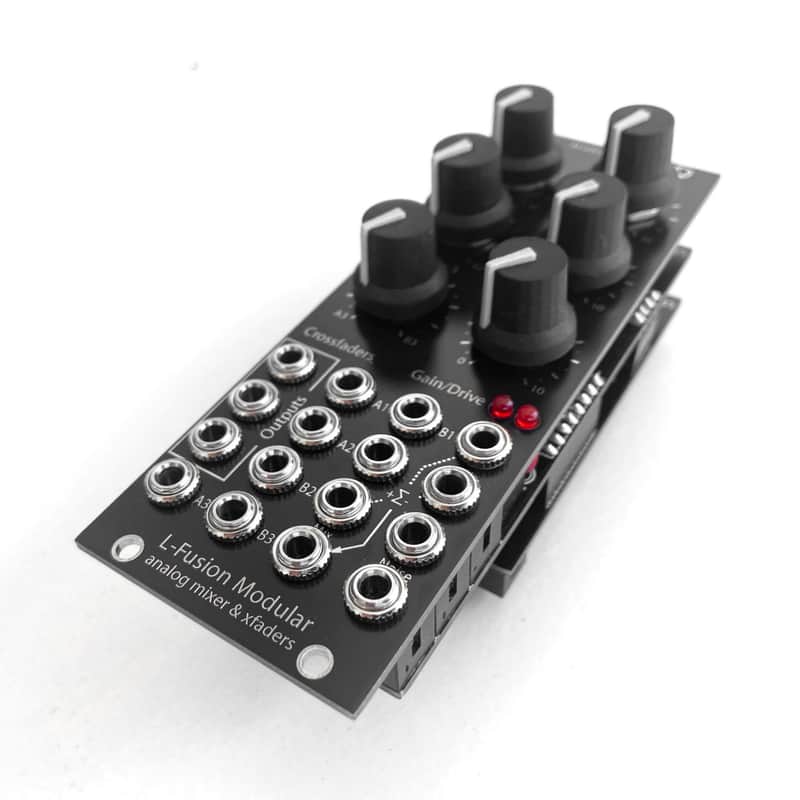

Utility Eurorack module with 3 crossfaders, 3 channel mixer and analog white noise output. Crossfaders can be used for VCO wave mixing, precision CV/audio attenuation, stereo panning or as dry/wet mixers in effect signal chain.

3 channel mixer in the module is designed to perform analog signal summing and subtraction with soft clipping. Subtraction allows converting low pass filters to high pass. Copy of mixer output signal can be fed to one of its inputs creating feedback based overdrive, together with soft clipping it can produce heavy analog distortion. Other modules can be placed in the feedback loop creating different sound effects.

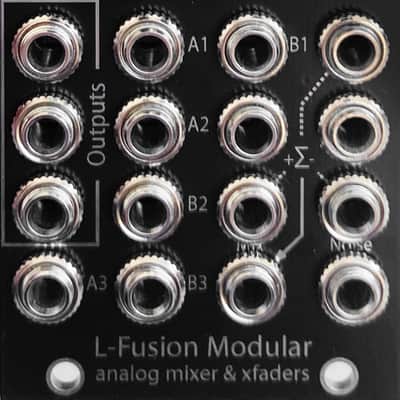

On the front module offers two leds, one indicating that signal sum had reached 5 volts, second one turns on when signal is overdriven. All potentiometers are precision Alpha variety, module is made with high quality electronic components, features rubber knobs with soft touch for easy grip and tactile feedback.

  • Power consumption: +12V - 60mA, -12V - 50mA
  • Module width: 9HP
  • Module depth: 3.8 cm
  • Noise level: -90dB
  • Input impedance: 100kΩ
  • Output impedance: 1kΩ 0.1%
  • Testing: Fully tested before dispatch

ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
Brand
Model
  • 3 analog crossfaders, 3ch mixer, distortion, white noise 9HP Eurorack Module
Categories
Year
  • 2023
Made In
  • Spain
