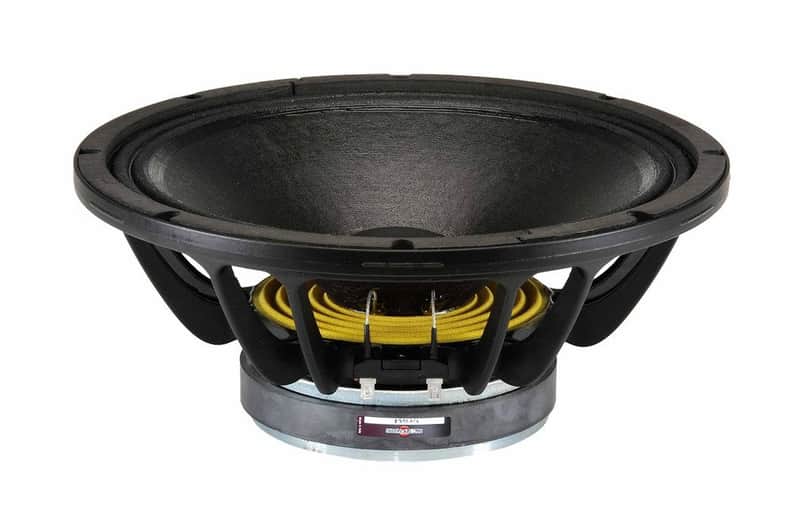

B&C 12" 250 Watt 8 Ohm Speaker Woofer - 12FW64-8

Overview Great power handling and very smooth response to 3 kHz make the B&C 12FW64 12" speaker ideal for 2-way PA stage systems, or in combination with a sub for a high performance 3-way rig. The 12FW64 provides great performance when installed in sealed, vented, or horn-loaded speaker enclosures. Features

• Waterproof cone treatment and double half-roll cone surround
• 2.5" aluminum voice coil
• 98.0 dB 1w/1m sensitivity and 500 watt continuous program power make high acoustical output
• Excellent performance in 2-way or 3-way systems

Specifications

• Nominal Diameter 12" Power Handling (RMS) 250 Watts
• Power Handling (max) 500 Watts Impedance 8 ohms
• Frequency Response 55 to 3,000 Hz Sensitivity 98 dB 1W/1m
• Voice Coil Diameter 2.5"

Thiele-Small Parameters

• Resonant Frequency (Fs)55 Hz DC Resistance (Re) 5 ohms
• Voice Coil Inductance (Le) 1 mH Mechanical Q (Qms) 3.5
• Electromagnetic Q (Qes) 0.32 Total Q (Qts) 0.29
• Compliance Equivalent Volume (Vas) 2.26 ft.³ BL Product (BL) 15.5 Tm
• Diaphragm Mass Inc. Airload (Mms) 47g Maximum Linear Excursion (Xmax) 5 mm
• Surface Area of Cone (Sd) 522 cm²

Materials of Construction

• Cone Material Coated Paper Surround Material Cloth
• Voice Coil Wire Material Aluminum Voice Coil Former Fiberglass
• Basket / Frame Material Cast Magnesium Magnet Material Ferrite

Mounting Information

• Overall Outside Diameter 12.4" Baffle Cutout Diameter 11.1"
• Depth 5.35" Bolt Circle Diameter 11.7"
• # Mounting Holes 8
