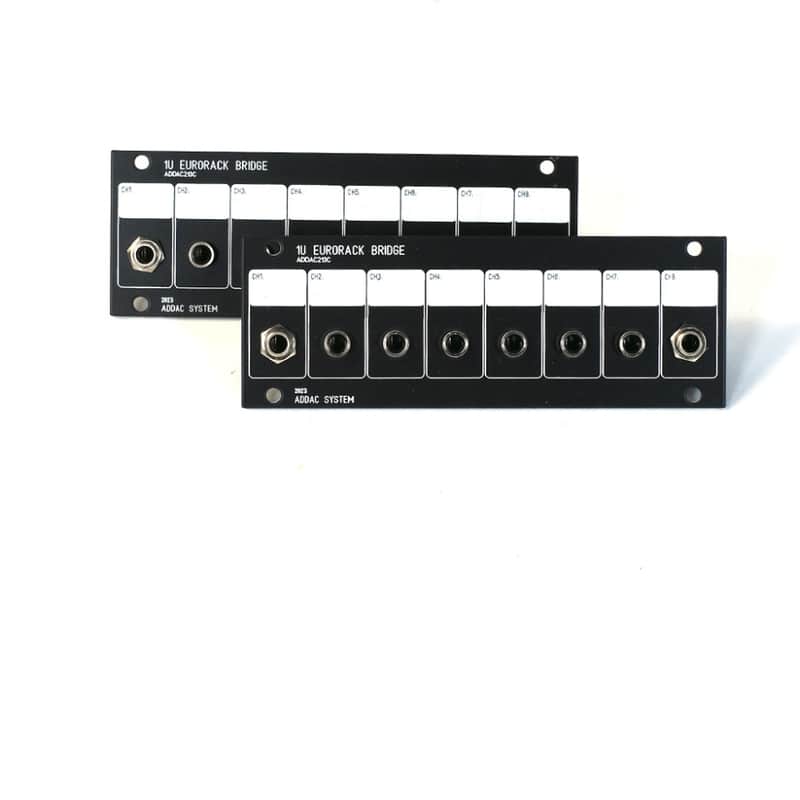

ADDAC System 213C 1U Eurorack Bridge

The ADDAC213C is the third pair of modules from our Eurorack Bridge system, this time made for 1U rack rows!

A pair of ADDAC213Cs can be used in standalone to send/receive 8 CV or audio signals between different points inside the same case or as an expansion to the main pair of Eurorack Bridge modules, the ADDAC213As.

Standalone use:
Two ADDAC213C modules can be connected to each other with the use of a single ribbon cable and then used inside a case to carry signals between distant points without the need for long cables. Less clutter, less spaghetti, more space of your fingers on those knobs!

ADDAC213Cs always come in pairs. A single pair can send & receive up to 8 CV or audio signals between different points in your case at the same time.

Do you have modules that you often use together in different areas of your case? Would you prefer that each row’s cables don’t mingle with cables from other rows? Grab yourself a pair of ADDAC213s.

As an Expansion to an ADDAC213A:
Each ADDAC213C connected to the backside of an ADDAC213A adds 8 more channels to the main bridging functionality of the ADDAC213A.
Up to 2 ADDAC213C can be connected to an ADDAC213A module, expanding the bridging between two difference cases to a total of 24 channels.

If you’re looking for a simple one-cable bridge between your various cases, then look no further than the ADDAC213A.
Between the ADDAC213A pair and the ADDAC213B, your cases never looked so elegantly connected together!
Check out our ADDAC213A product page for more information:


Price is for a pair of modules (2 modules) including two 50cm ribbon cables, only one is used to connect the two ADDAC213C together but two are necessary when connecting the two ADDAC213C to two ADDAC213A.
Custom ribbon cable sizes also available upon request.

Specs

Mechanical:
. Format: 1U Eurorack
. Width: 22HP
. Depth: 2.5 cm

Electrical:
Passive / Does not draw current
Ribbon Cable: 50cm or 100cm ribbon cable (custom sizes available upon request)

LEAD TIME - IMPORTANT NOTE:
Although this is also described in our Shop Policy page, it is worth stressing that, by virtue of being a small team and not outsourcing a great part of our production, long story short, we sort of make your order on demand.
After you place an order, it takes up to 15 business-days to be ready to ship.
This is why you'll see this module as 'in stock', but this in fact means that we do have all its parts and can produce your module. Thanks for understanding, and for choosing us!
