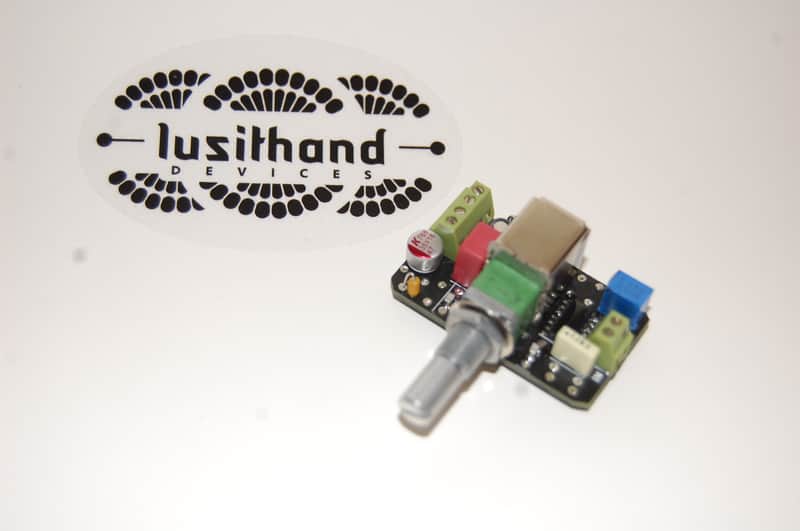

Lusithand Devices single NFP, Wal style bass active onboard preamp filter.
The NFP is a filter preamp like the ones seen on Alembic or Wal basses.

Being a Low Pass Filter, it lets all bass frequencies pass through up to 4 Khz where it forms a resonant peak and starts cutting after that.

The potentiometer allows you to sweep the cutoff frequency(resonant peak), within a range of 150hz to 4 khz, and you can boost the cutoff point by pulling up on the potentiometer's switch (push-pull).

The NFP was designed to run between 9 and 27 volts and it has a power consumption of +- 2 mAh (@9v).

Board: W: 3.1cm; H: 2.3cm; D: 1.7cm

Pot dimensions: Hole size is 6.35mm, and bush height is 10mm.

Technical suggestion :

This single NFP filter can be added to any bass with existing two active or passive pickups

& an active preamp. Simply add between preamp & output jack. For more info. message me.
