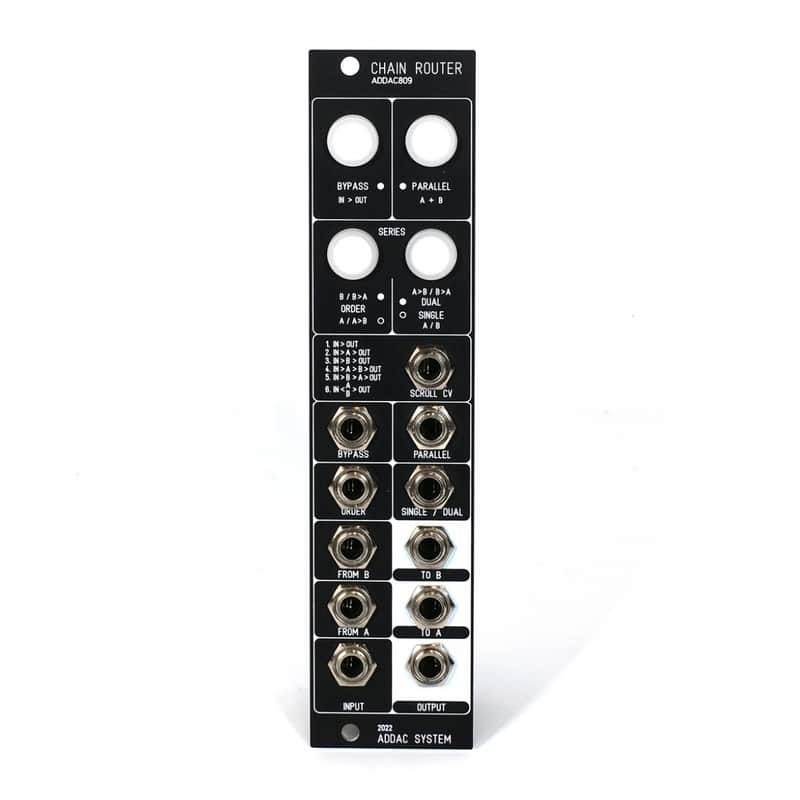

ADDAC System ADDAC809 CHAIN ROUTER 2022 - Black

ADDAC809 is a dynamic CV operated I/O router that allows one source (Audio or CV) to be routed through 2 different chains (of one or more modules) before being sent to an output. Six routing patterns are allowed:

1. IN > OUT
2. IN > CHAIN A > OUT
3. IN > CHAIN B > OUT
4. IN > CHAIN A > CHAIN B > OUT
5. IN > CHAIN B > CHAIN A > OUT
6. IN > CHAIN A > OUT CHAIN B

A practical example is to have an audio source, a delay and a looper. And the question: should the delay be placed before or after the looper? Sometimes you may need the delay to be before the looper as you may want to sample the audio with the delay or sample the pure audio source and apply the delay afterwards.

This small utility module solves this issue on the fly without having to repatch anything.

Specs

. Width: 12 HP
. Depth: 55mm
. Current: 80mA +12V / 30mA -12V

Note: All specifications and features are subject to change without previous notice.

LEAD TIME - IMPORTANT NOTE:
Although this is also described in our Shop Policy page, it is worth stressing that, by virtue of being a small team and not outsourcing a great part of our production, long story short, we sort of make your order on demand.
After you place an order, it takes up to 15 business-days to be ready to ship.
This is why you'll see this module as 'in stock', but this in fact means that we do have all its parts and can produce your module. Thanks for understanding, and for choosing us!
