Stratocaster Solderless Wiring Harness CTS Pots Mojotone Dijon Cap Switchcraft Jack!

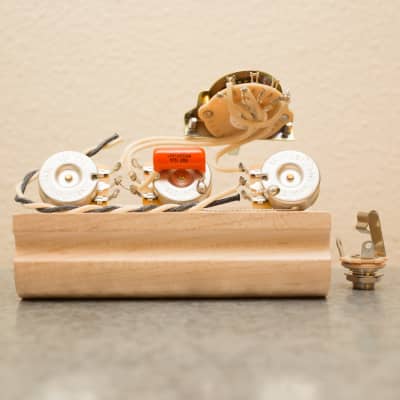

This is s hand wired solderless Stratocaster wiring harness. All the work has been done for you. All you have to do is drop it in make your connections with the supplies screwdriver and you are done. There are connections for 3 pickups (N/M/B) and grounds, input jack (Switchcraft jack included), and trem claw connection. If you need a tremolo claw with the ground already soldered to it send me a message. Id link it, but Reverb seem to not like links to other parts on reverb!

CTS Pots with 1/4" bushings are more suited for thin single ply pickguards. I supply an extra trim washer for all your mounting needs.

Note: We can build these without the plate. If you do not need it mounted to a grounding plat let us know.

Specs:

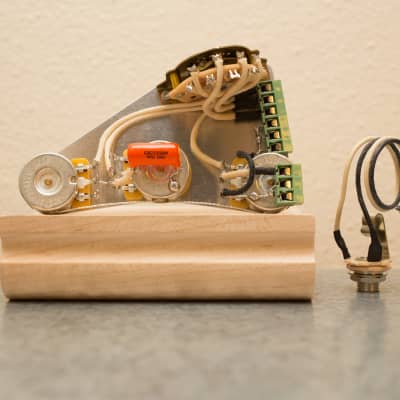

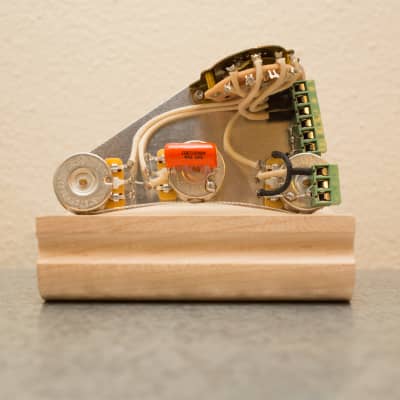

  • All electronics are mounted on a grounding plate (mini screwdriver included for connections)
  • 3 CTS 250K Pots 1/4" Bushing (3/8" Bushing also available. Send us a message if you would rather have those)
  • Mojotone Dijon Tone Cap (If you want Paper In Oil send us a message and I will send you an offer)
  • Switchcraft 1/4" Mono Jack (We can do PureTone. send us a message and I will send you an offer)
  • Oak Grigsby 5 Way Switch (If you want CRL 5 Way send us a message and I will send you an offer)
  • Connections for Neck, Middle and Bridge Pickups Including the Ground Connections
  • Ground Connection For The Trem Claw. (If you need a Trem Claw with the Ground Soldered message me! )

If you are looking for a different style of Strat harness let us know. We can accommodate almost any wiring configuration including push/pull pots, 6 way switch etc... Send us a copy of the wiring diagram in a message and I will send you an offer. We will be offering spring loaded connection blocks soon if that is something you are interested in.

Please Note: When you receive the item, please examine the it before installing. If you have any concerns please get in touch with us. We will not except any returns once it has been modified in any form.

Take a look at all the pictures and ask all questions before buying. This part will be packaged securely before shipping.

*** INTERNATIONAL SHOPPERS, PLEASE MESSAGE ME FOR A SHIPPING QUOTE ***

ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
Brand
Model
  • Strat Solderless Wiring Harness CTS-1/4 Oak Grigsby MojoTone Cap
