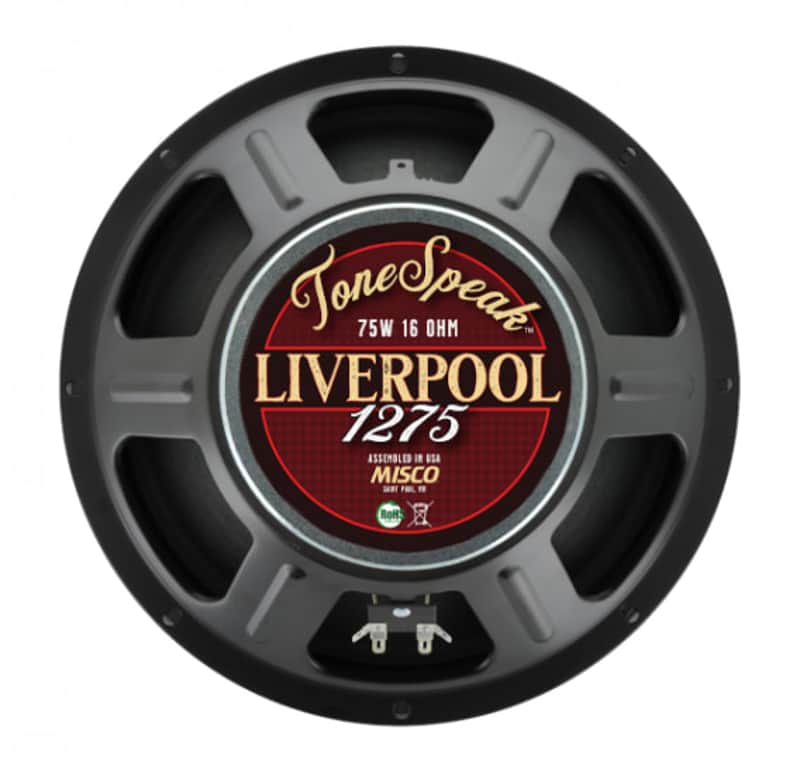

Liverpool 1275 - 12" Guitar Speaker, 75 Watt, 16 Ohm

Liverpool 1275 - 12" Guitar Speaker, 75 Watt, 16 Ohm

A speaker truly worthy of The Crown!

The Liverpool 1275 is the classic British rock tone, inspired by tones from the 80’s.  A complex, thick and vocal midrange cuts through the upper-register, while nice, full, lower-mid grunt completes the warm, gutsy, tight lows.  The highs, while clear, open and articulate remain warm and ear pleasing.

• British tone guitar speaker
• 12” (305 mm) steel basket diameter
• 75 watts, 16 ohm, 100 dB SPL
• 1.75" copper voice coil, nomex former
• Kurt Müller speaker cone
• 50 oz. ferrite magnet

ToneSpeak guitar speakers are the result of years and years of the deep-dive for the perfect tone.  Decades of testing, field experience and conversations with elite tone-chasers have all been poured into these fine products.  When you play ToneSpeak, you play the best.

Brand Name

ToneSpeak

Size, Nominal (inch & mm)

12" (305 mm)

Shape of Speaker

Round

Speaker Type

Guitar Speaker

Application

Musical Instruments

Environment

Indoor

RoHS Compliant

Yes

Nominal Impedance (Z) (Ω)

16

Rated Power IEC268-5 (W)

75 Watts

Frequency Range (Hz)

75 - 5,000

Sensitivity (dB SPL) ¹

100

Resonant Frequency (Fs) (Hz)

83

DC Resistance (Re) (Ω)

14.0

Voice Coil Inductance (Le) (mH)

0.6

Mechanical Q Factor (Qms)

10.0

Electrical Q Factor (Qes)

0.93

Total Q Factor (Qts)

0.85

Mechanical Resistance (Rms) (kg/s)

1.78

Compliance Equivalent Volume (Vas) (L)

41.4

Suspension Compliance (Cms) (mm/N)

0.1

Surface Area of Diaphragm (Sd) (cm²)

551.6

Moving Mass (Mms) (gm)

30.4

Motor Force Factor (BL) (T•M)

16.3

Efficiency (η₀) (%)

3.4

Efficiency Bandwidth Product (EBP) (Fs/Qes)

100

Basket Type

Stamped Steel with black powder coat painting

Terminal Size (mm)

5.2 x 0.5

Voice Coil Diameter (mm)

44

Voice Coil Wire Material

Copper

Voice Coil Former Material

Nomex

Voice Coil Winding Style

Single Layer

Magnet Material

Ferrite

Magnet Weight (g)

1417

Cone Body Material

Felted paper

Cone Surround Material

Felted paper with damping edge treat

Dust Cap Material

Open cloth

Spider Material

Cotton

Net Weight (kg)

5.9

Technical Notes

¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance
