Drunk Beaver Secret Sauce (Ge Albini Percolator)

Secret Sauce is our take on the classic Harmonic Percolator circuit. It was designed to Steve Albini Percolator specs but had a unique transistor set and features. Instead of just Germanium and Silicon transistors pair, we've used NOS Soviet Ge P401 and Si BC307 (you could select one via toggle switch) + NOS NPN Ge. We added a buffered pickup simulator in front of the circuit to allow the fuzz to be used everywhere in a signal chain without losing its tone. When it comes to diode clipping, you could select Germanium (NOS Soviet D311) or Silicon (BAT85) diodes, and choose the level of compression and clipping symmetry.

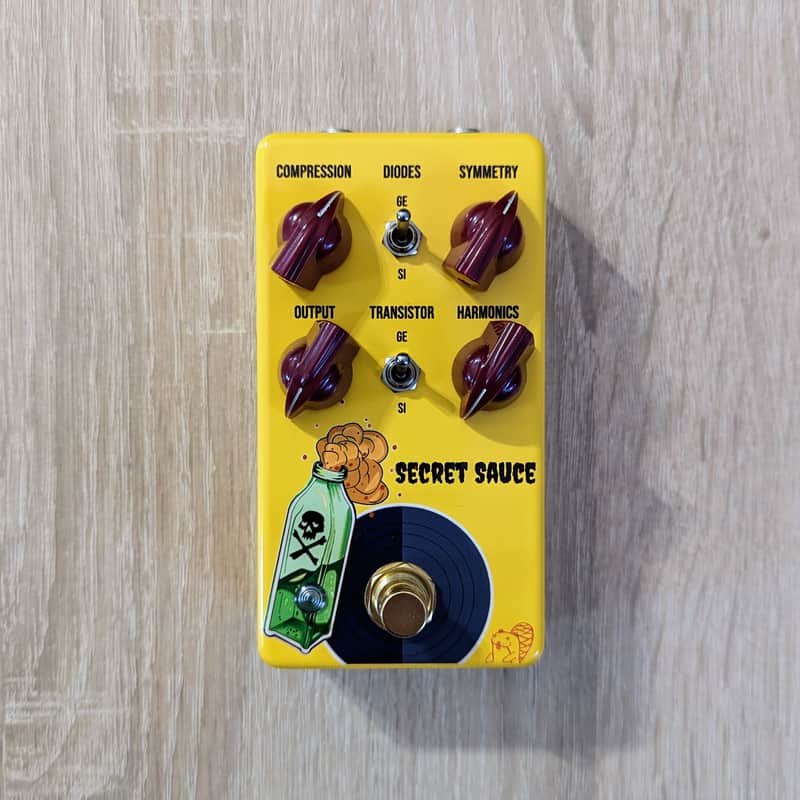

Controls:

• Harmonics - fuzz gain level.
• Output - effect output level.
• Compression - controls how much signal goes through diodes for clipping.
• Symmetry - sets how signal getting clipped by diodes symmetrical or asymmetrical.
• Diodes toggle switch - selects between Germanium (NOS Soviet D311) or Silicon (BAT85) diodes.
• Transistor toggle switch - selects between Germanium (NOS Soviet P401) or Silicon (BC307) transistor.
• LED brightness trimmer - placed on the PCB trimmer allows you to adjust the status LED brightness.

Power Supply: 9V DC adapter (Boss-style negative center) not included. No batteries. They are bad for the environment 🌲.

Current Draw: 4 mA

Dimensions: 125B, 122mm x 66mm x 39.5mm

Lifetime Warranty - feel free to contact me if you have any troubles with a pedal!

FREE Worldwide shipping 🌏

Feel free to ask. I'll answer any questions ASAP.
