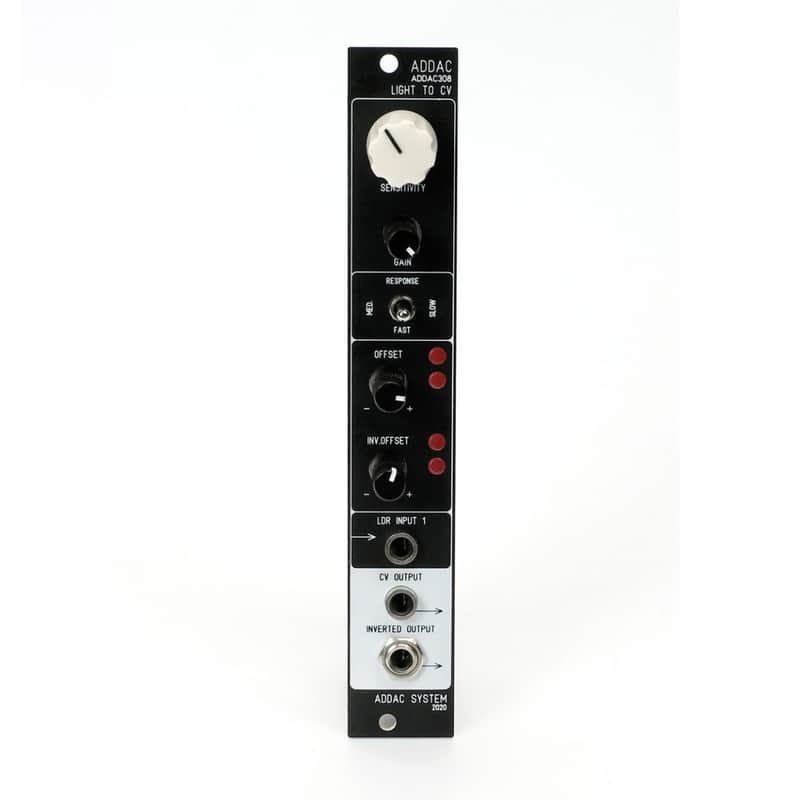

ADDAC System ADDAC308 LIGHT TO CV 2020 - Black

Another addition to our ADDAC300’s Expressive Controls series

This module converts the incoming light hitting an external light sensor into 2 Bipolar CV Streams:
Output: More light > Higher CV output
Inverted Output: More light > Lower CV output

The external sensor is enclosed in a jack socket in order to be used with any standard jack cable and be able to place it in any place outside the eurorack frame.

There are several controls to adjust the CV Output’s signals:
Sensitivity:
Adjusts the Light Sensor sensitivity to Light
The Higher the sensitivity the better it responds to low light situations

Response:
3 fixed settings (medium/fast/slow) to set the slew applied to the raw signal coming from the sensor.

Gain:
Sets the gain for both outputs

Offset:
Adjusts the Offset for the main Output.

Inverted Offset:
Adjusts the Offset for the Inverted Output.

-

Specs:
4hp
±50mA 4.5cm deep

Note: All specifications and features are subject to change without previous notice.

LEAD TIME - IMPORTANT NOTE:
Although this is also described in our Shop Policy page, it is worth stressing that, by virtue of being a small team and not outsourcing a great part of our production, long story short, we sort of make your order on demand.
After you place an order, it takes 15 business-days to be ready to ship.
This is why you'll see this module as 'in stock', but this in fact means that we do have all its parts and can produce your module. Thanks for understanding, and for choosing us!
