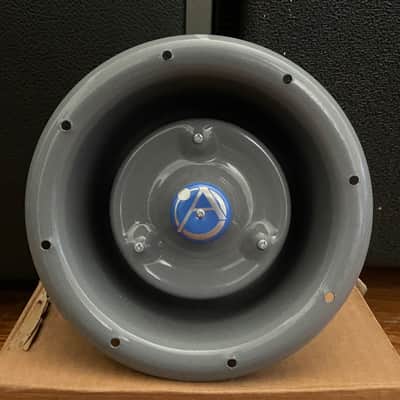

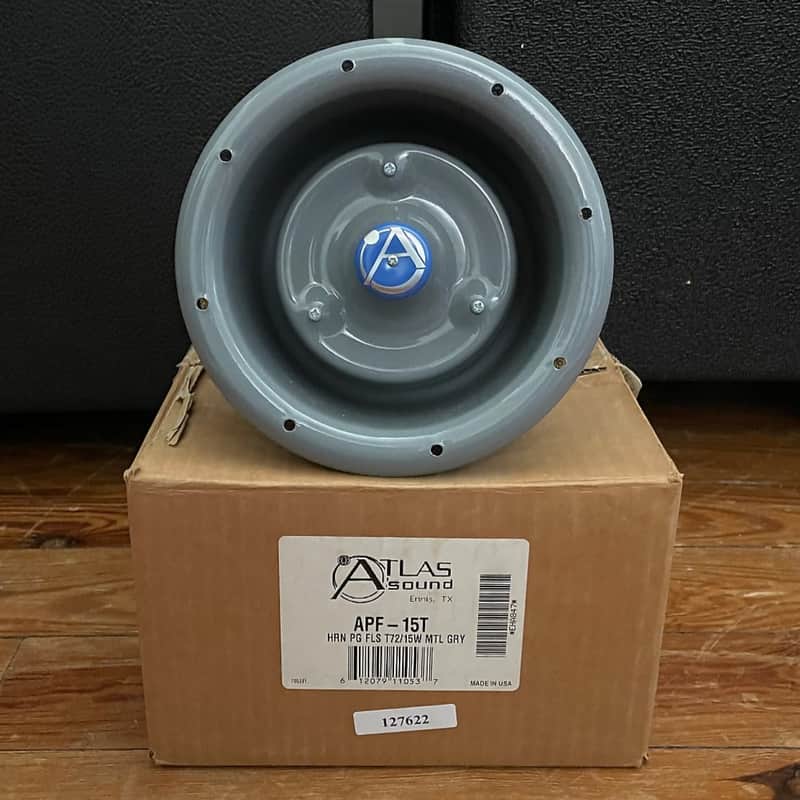

Atlas Sound Flanged Horn Speaker With 15-Watt 25V/70V/100V Transformer - Made In USA

For sale is a brand new Atlas Sound Flanged Horn Speaker with 15W 25V/70V/100V Transformer. Speaker has been unboxed but has not been used. Below is a description and specs from the Atlas Sound site:

DESCRIPTION:
Provide 15 watts of continuous power handling with superior intelligibility and efficiency with AtlasIED APF Series Omni-Purpose® speakers. Vandal-resistant units are designed for flange or recessed mounting to panels, interior/exterior walls, or ceilings.

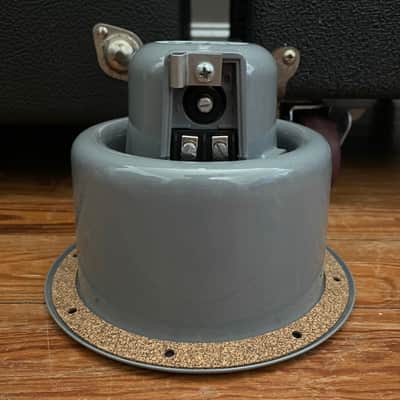

Metal construction withstands adverse temperatures, humidity and physical abuse. For flexibility and optimum adjustment convenience, transformer-equipped Model APF-15T includes the Vari-Tap® Control/connect center with 7 position, wattage/impedance selection switch.

Weather-resistant metal construction and enclosed wiring terminals eliminate the need and cost of a backbox. However, for aesthetic consideration and retrofit convenience, models will flange mount to any standard size ceiling or wall baffle and/or enclosure capable of accommodating conventional 6" or 8" diameter speakers. Model FAMT-6 mounting kit is required for 8" models.) Recessed installation may be accomplished by mounting Models APF-15 or APF-15T into a 4" or 5-1/2" deep opening, respectively, or to an L20 Series enclosure. L20 Series also includes mounting rings and baffles. Speakers are finished in grey baked epoxy.

SPECIFICATIONS:
- Frequency Response: 600Hz - 14kHz
- Sensitivity: 104dB

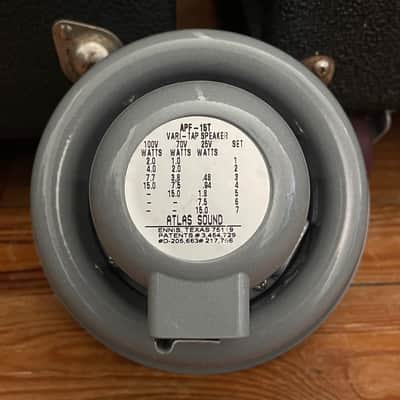

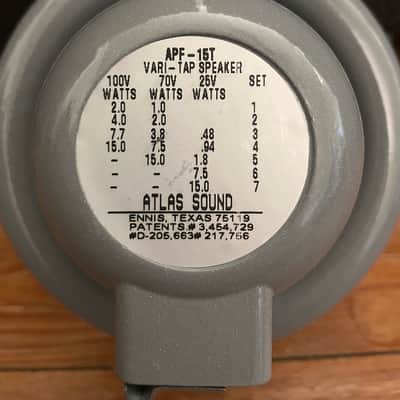

- Power Taps: 1, 2, 3.8, 7.5, 15W @ 70.7V
- Dispersion: 95°
- Power Rating: 15 Watts
- Operating Temperature Range: -40 to 70C
- Depth: 5 3/16" (13.18 cm)
- Diameter: 5 5/8" (14.29 cm)
- Shipping Weight: 4.00 lbs (1.81 kgs)
- Operating Temperature Range: -40C to 70C

Thanks for looking and be sure to follow our Reverb store for listing updates, and also @thesolidstateestate on Instagram for vintage solid-state amp and speaker content!
