Compatible LASE Replacement Amplifier Module EV ELX200- ELX 200 10P; 12P; 15P Powered Speaker w/DSP

New ! Compatible Aftermarket Replacement Amplifier Module LASE - EP200
for

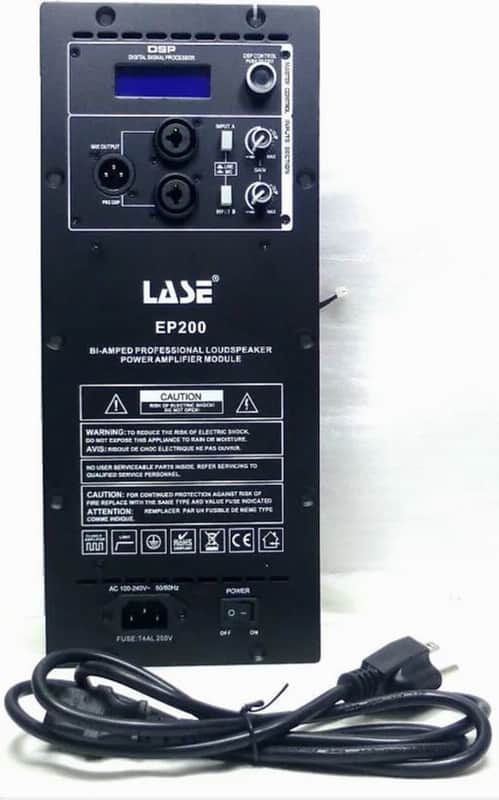

Electro Voice EV - ELX 200 -10P; ELX200-12P; ELX200-15P.Bi-Amped Professional Loudspeaker Power-Amplifier Module With DSP Control.(8Ω Load Only). Very Easy To Install. The New Compatible LASE - EP200 Professional Loudspeaker Bi-Amped Power-Amplifier Module is a Replacement for ELX 200 -10P,12P & 15P Powered speaker has a number of unique control features - push button mic/line level inputs,mix level XLR output ,DSP (digital signal processor) on the master control with push button control. Works 110V or 220V

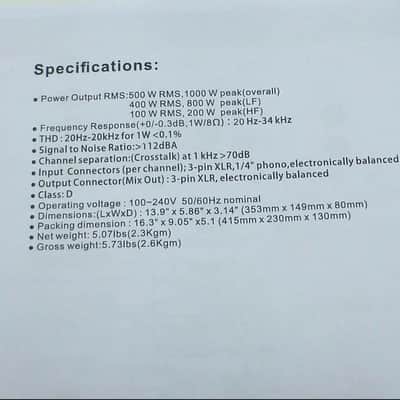

Specifications :

• Power rated @ 8 Ohm Load Only.
• Output Power : 20-20kHz, 1W with 1 khz
• Power Output RMS : 500 W RMS, 1000 W peak (overall) @ 8Ω.
                                    400 W RMS, 800 W peak (LF)
                                    100 W RMS, 200 W peak (HF)
• Frequency Response(+o/-0.3dB,1W/8Ω) : 20 Hz - 34 kHz
• Crossover Frequency : 1.7 Khz
• THD : 20 Hz - 20 kHz for 1 W    <0.1%
• Signal-to-Noise Ratio : >112 dBA
• Channel separation : (Crosstalk) at 1 kHz    >70 dB
• Input Connectors (per channel) :    3-pin XLR, 1/4" phono, electronically balanced.
• Output Connector (Mix Out) : 3-pin XLR, electronically balanced
• Class : D
• Operating voltage : 220 V / 110 V nominal   190-240 V / 90-130 V selectable

               (Please specify in a message which voltage you prefer).

• Dimensions : (L×W×D) : 13.9" x 5.86" x 3.14" (353mm x 149mm x 80mm).
• Packing dimension : 16.3" x 9.05" x 5.1" (415mm x 230mm x 130mm)
• Net weight :5.07lbs (2.3Kgm)
• Gross weight :5.73lbs(2.6Kgm)
