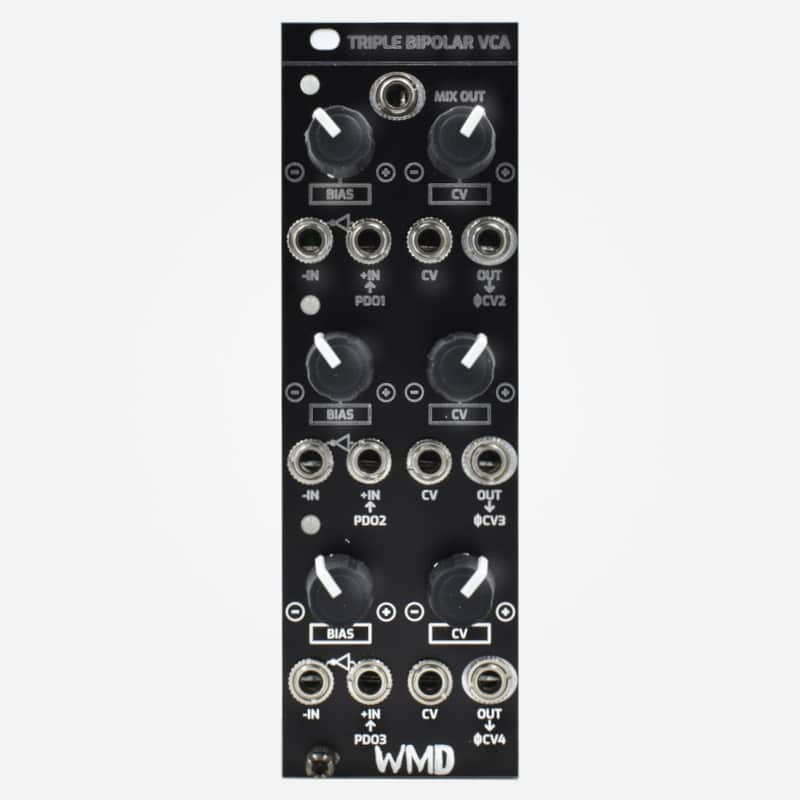

Intoducing the WMD Triple Bipolar VCA! Featuring 3 bipolar VCAs, a MIX out, and more,this module provides dedicated inverting/polarizing/bipolar amplitude modulating inputs normaled to the Phase Modulation inputs on the PDO and can connect to it as an expander but is fully functional on it's own!

A bipolar VCA is like a normal VCA when operated with positive control voltage. But when using a negative control voltage, the output will swing back through zero amplitude and the output will be inverted. This produces deeper modulation than a normal VCA and can be used to great effect on VCOs and LFOs.

The Triple Bipolar VCA also has a special feature-dedicated inputs on each channel allow for replacing the inverted signal with a seperate input! When the VCA goes negative, rather than outputing the inverted +input it will alternate to the -input if patched, sort of like a crossfader only instead of the sum in the middle, it will be silence.

The Triple Bipolar VCA is also designed to be used as a standalone module, it does not require the PDO to operate.

Features:

• Three Bipolar VCAs


• Excellent for Bipolar modulation or AM synthesis


• Essential expander for the PDO mkII


• Linear Response VCAs


• Bipolar Attenuators for CV control


• Mix Output Sums All Three VCAs


• Bi-color Signal LEDs


• "-" Input for Mix Through Zero, converts a bipolar vca channel to a dual vca


• Skiffable PCB Design



Specifications:

8HP
80 mA +12V
75 mA -12V
0 mA 5V
28 mm deep
