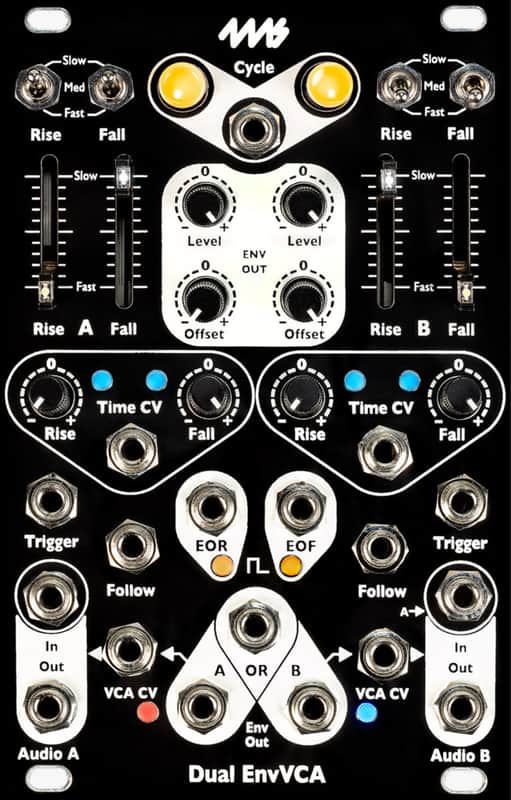

4MS DEV Dual EnvVCA Dual Envelope VCA Eurorack Synth Module, Black

The Dual EnvVCA is a two-channel analog linear envelope generator with two fully independent low-noise exponential VCAs. With time ranges from 30 minutes to 8kHz, it can be used as an LFO, slew limiter, ASR/ADSR complex EG, audio-rate oscillator, stereo audio/CV VCA, envelope follower, sidechain processor, and general utility module. The outputs can be attenuated, inverted, and offset without disrupting the VCA, making it a versatile modulation source.

Product Features

• Versatile linear envelope generator/LFO
• Low-noise, low-distortion, DC-coupled exponential VCAs
• 100% analog
• Sliders and Range switches control Rise and Fall times from ~1.25ms to ~5 min
• Time CV jack extends time range: ~125µs (8kHz) to ~30 min.
• Independent attenuverters for Rise and Fall time
• Blue/Red LEDs indicate strength and polarity
• Cycle buttons for looping envelopes (LFO)
• Trigger input jacks fire a one-shot envelope
• Cycle gate input jack toggles cycling for both channels
• EOR/F (End of Rise/Fall) gate outputs can be used to chain and sequence events
• Env Level and Offset knobs scale and shift Env Out without changing VCA volume
• Audio In and Out jacks for passing audio or CV through the VCA
• VCA CV inputs to use VCAs independently from the envelopes
• VCA gain internally connected to envelope output when VCA CV jack is left unpatched
• Follow input jacks allow for slew limiting, sustain (ASR), and exotic filtering effects
• Re-trig jumpers allow for re-triggering during rise phase
• Depth: 0.95"
• Power usage: 12V/156mA, -12V/131mA

Attributes

• Color: Black

Technical Specifications

• Type: Synth Module
• Inputs: 2 x 1/8" (audio in)
• Outputs: 2 x 1/8" (audio out)
• Processing Type: Analog
• Power Supply: Requires Eurorack case and power supply
• HP Size: 16HP
