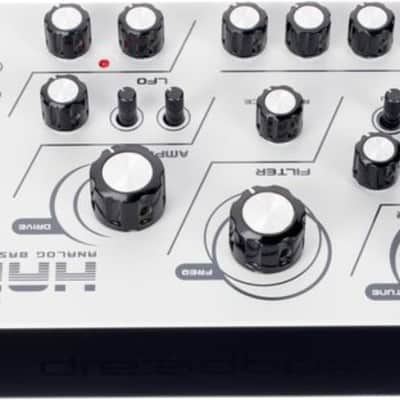

A reissue of their famous analog bass synth, the Hades from Dreadbox is a faithful reproduction complete with OTA distortion, USB power, and the ability to be racked up in a Eurorack case, taking up 42hp. You still have one massive sounding VCO with two sub octaves and two waveforms. All of that feeds an OTA VCA capable of lovely distortion and a nice, thick 3-pole lowpass resonating filter. Two envelopes, one AD/RS and an improved AR over the original, plus a wide-range triangle LFO for exceptional modulation capabilities. If that wasn't enough, there are 11 patch points available to customize the sound. The new Hades reproduction form Dreadbox brings back the rumble and girth of the original with some nice improvements.

Product Features

• Faithful re-creation of the original Hades synth with improvements to AD/RS and AR for greater sonic control
• Evoke mythical lows with the massive oscillator and multiple sub-octaves
• OTA distortion and VCA deliver distinctive bass with plenty of grit
• Semi-modular design lets you take Hades out of its housing to be used in Eurorack setups with 42HP of free space
• 2 waveform choices let you fine-tune pulse width for sawtooth and square signals
• 3-pole resonating LPF allows for dynamic, reactive shaping
• Glide control can be honed to accommodate any number of playing preferences
• Triangle-wave LFO encompasses a wide frequency range to elicit sonorous sweeps and shapes
• Versatile CV and MIDI control options ensure seamless integration with most systems
• 3.5mm type A socket enables MIDI response to pitch, note on/off, mod wheel, pitch wheel, all cannels, and OMNI channel (with MIDI learn)
• 11 patch points include CV management of envelope, LFO, modulation wheel, PW, filter cutoff, VCA, CV, and gate parameters

Attributes

• Color: Light Gray

Technical Specifications

• Type: Desktop Synthesizer
• Dimensions: 2.95" H x 8.85" W x 6.29" D
• Inputs: 5 x 1/8" TS (PW, Filter CUT off, VCA, CV, Gate)
• Outputs: 4 x 1/8" TS (Envelope, LFO, Modulation Wheel, 1v/ovc)
• MIDI: In
• USB: 1 x Type B
• Processing Type: Analog
• Polyphony: 1 Note
• Power Supply: USB Adapter
• Oscillator: 1 x VCO, 2 x Sub Octaves
• Filter: 3-pole Resonating Lowpass Filter, OTA Distortion
• Waveform: 2 x Waveforms (PW control)
• HP Size: 42HP
