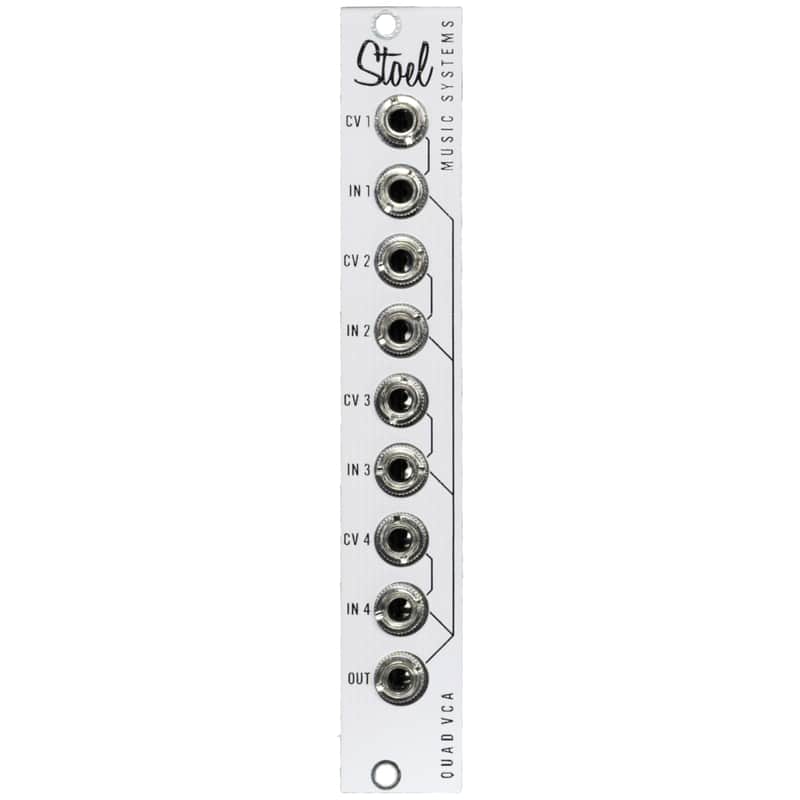

The Stoel Music Systems Quad VCA provides four logarithmic (audio taper response) VCAs that mix to one common output in a compact 4HP module.

Both the audio jacks and the CV jacks are normalled from top to bottom. If a CV signal is plugged in, and the CV jacks below it are unused, the same CV signal goes to the remaining VCAs. This applies the same VCA signal to multiple signals, such as in stereo or quad-channel configurations. Likewise, when an audio signal is plugged in, and the audio jacks below it are unused, the same audio signal is provided to the VCAs below. This configuration allows for the remaining VCAs to be used in parallel. Using two VCA channels in parallel reduces the noise floor by 3dB, and using all four channels in parallel reduces the noise floor by 6dB. Please note there will be an increase in output level when VCA channels are used in parallel.

All Stoel Music Systems modules feature aluminum front panels with a durable high-gloss white finish. The front panel markings are digitally printed at high resolution with UV-cured ink for a crisp appearance and exceptional durability. Mounting holes are plated to reduce screw rash significantly. The power connection features polarity protection to prevent accidental damage to the module if it is connected backward.

Each module includes a 12” long 10-pin to 16-pin ribbon cable compatible with the Eurorack standard, M3 mounting screws, and a complimentary sticker.

ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.learn more
Brand
Model
  • Quad VCA
