Analog Noir - Dual Tone Bender MKII / Tone Bender MK1.5

A circuit that takes advantage of the shared topology of the MKII and MK1.5 Tone Bender for a versatile dual germanium fuzz featuring two classic Tone Bender variants.

The MK1.5 side is an authentic reproduction of the two transistor Sola Sound MK1.5 Tone Bender. The circuit is true to the original with the addition of an external bias control that modifies the clean-up and character of the fuzz.

The MKII side is a faithful recreation of the three transistor MKII Tone Bender with an added gain control and 3-way voice switch. The voice switch allows the user to select from three EQ settings for a full range, mid forward, and upper mid voicing. The gain knob controls the input level / clipping for the signal being fed into the latter two transistor stages that make up the MK1.5. This circuit is true to the original MKII with the voice switch set to “low“ and the gain control at max.

TRANSISTORS

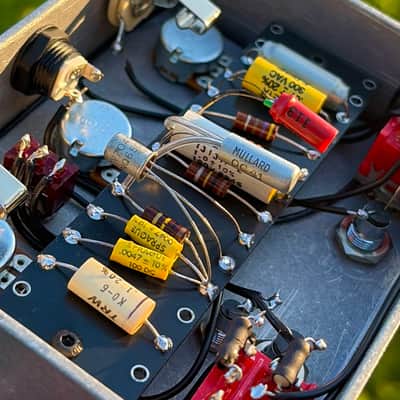

This version features a lower gain trio of 60’s Texas Instruments and Mullard transistors tuned to be a sweet and nuanced clean-up machine. This version has a warm and natural sound that lends itself to clean-up and lower gain fuzz textures.

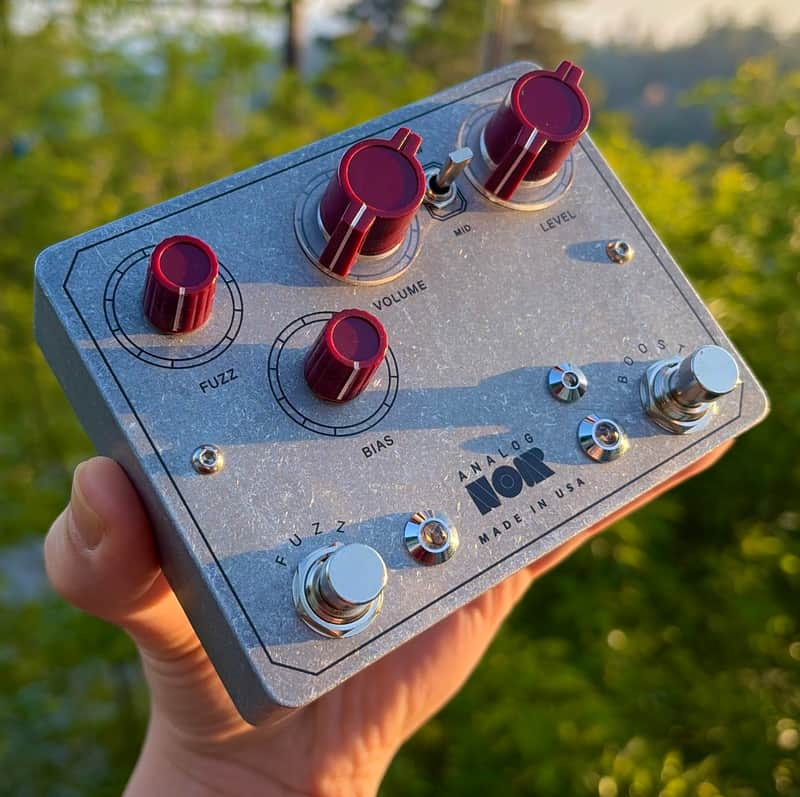

CONTROLS
Volume, fuzz, and bias are shared by both circuits. The gain and EQ switch only apply in the MKII setting.

• Volume
• Fuzz
• Bias
• Gain
• Voice switch (high / mid / low)
• Right foot switch (MKII / MK1.5 mode)
• Left foot switch (bypass / engage)

Equipped with a standard 9V DC jack. This product uses vintage PNP transistors which require an isolated supply. <10mA current draw.
