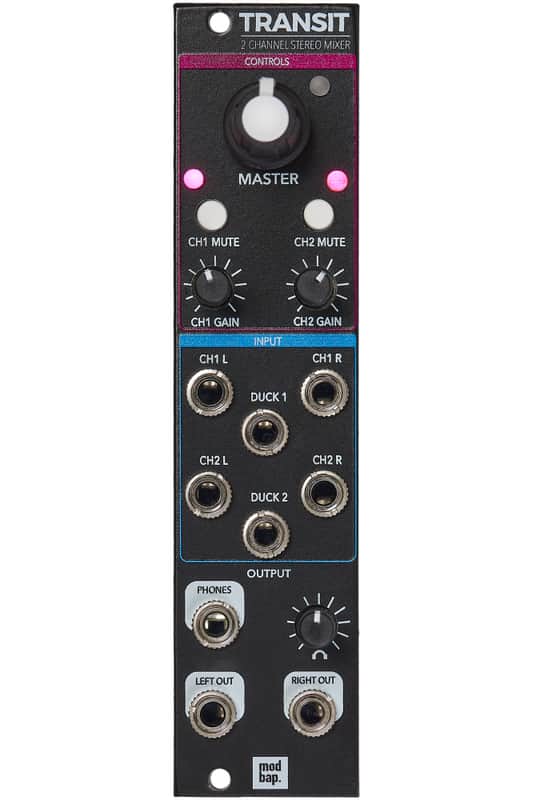

Modbap Modular Transit

Modbaps Transit is a full analog, dual stereo channel strip with cool features.

Transit offers you two stereo channels, each with two mono ins for left and right. The two channels each have a gain pot for volume control, a mute button and a ducking input. The ducking works in compressor manner by sending a CV signal (envelope, gate) into it to apply a gain reduction.

Furthermore, this module offers a main stereo output via two 3.5mm jacks and a headphone output - ideal as an interface to get the audio out of your Eurorack system.

Transit is a simple module, but with its clever combination of functions it can be used for signal mixing, gain staging, compressor ducking, performance mutes, etc. in just 6hp.

Features:

• All analog audio signal path


• 2 stereo channels


• mutes per channel


• gain control per channel


• ducking input per channel


• left/right output


• master volume control


• 3.5mm headphones output with dedicated volume control knob







HE: 3 TE: 6 Depth: 30 Power consumption +12V: 50 Power consumption -12V: 50
