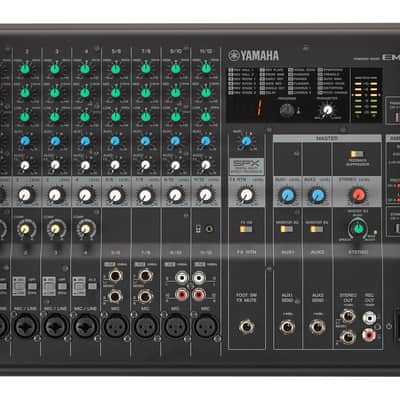

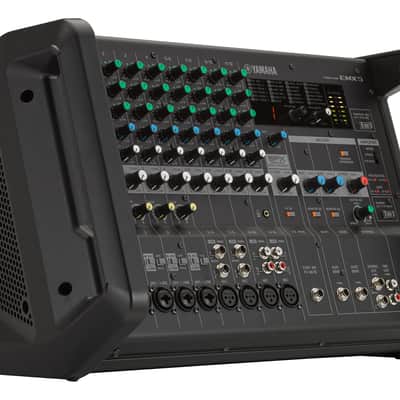

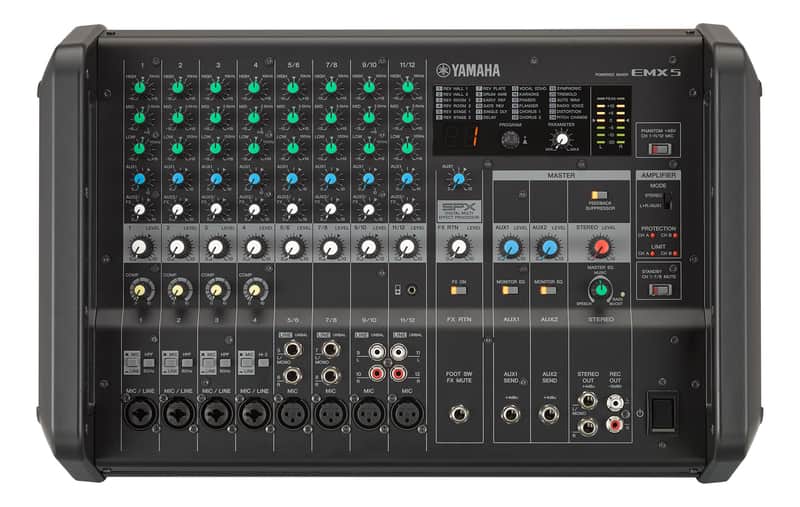

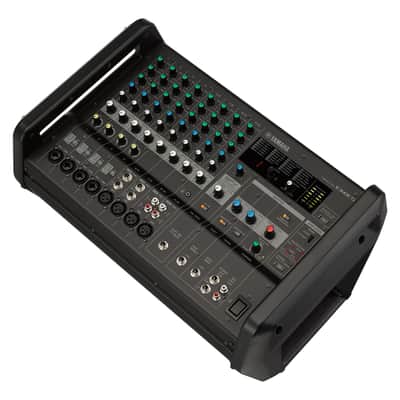

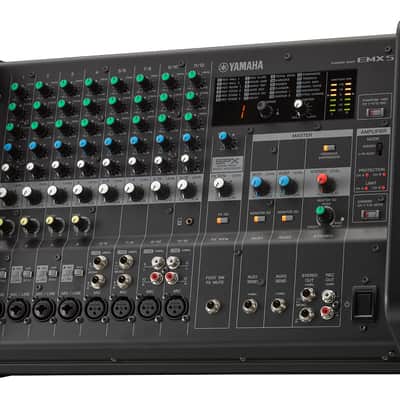

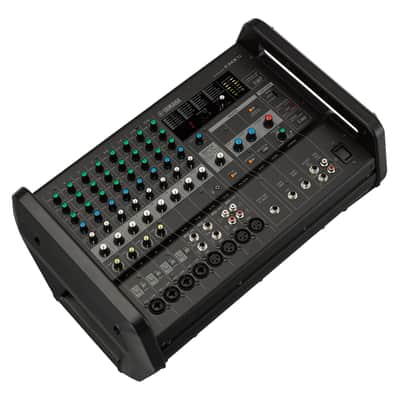

Yamaha EMX5 Powered Mixer

Austin Bazaar is an authorized Yamaha dealer.

Designed specifically for musicians, performers, or public speakers who put a premium on sound quality and convenient operation

Despite their compact construction, only speakers and a microphone are required to configure a fully functioning, extremely portable, and reliable sound system

Built-in high-efficiency power amplifier of 2 x 630W

Equipped with four mono input channels and four mono/stereo input channels, allowing up to 8 microphones and line-level devices such as keyboards and portable playback device to be connected to each channel

Equipped with 2 AUX SEND connections for a monitoring system or external effect devices, REC OUT unbalanced RCA pin output jacks to connect an external recorder, and STEREO OUT TRS phone jacks to output the mixed stereo signal

The new EMX7 and EMX5 were designed specifically for musicians, performers, or public speakers who put a premium on sound quality and convenient operation, and are ready to take their sound reinforcement to the next level. Despite their compact construction, only speakers and a microphone are required to configure a fully functioning, extremely portable, and reliable sound system with all the tools you need to mix, process, and deliver your audio just the way you want, anywhere you want.

Features

Powerful & High Efficiency Class-D Amplifier

Robust But Extremely Portable Design

Easy Setup, Easy Operation

Complete Range of Input & Output Channels

Speaker Processor and Preset (EMX7 only)

Onboard Feedback Suppressor

3-band Equalizer Control

Flex 9 Graphic Equalizer (EMX7 only)

1-Knob Master EQ (EMX5 only)

1-knob COMP

Rack-Mounting

Comprehensive, Professional Effects and Signal Processing

Flexible Speaker Connectivity

Internal Universal Power Supply

Outline: EMX5
I/O: Inputs: TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE)
: Phantom power: +48 V
: Outputs: SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R]
: Control and others: FOOT SWITCH : Effect Mute on/off
Bus: Stereo: 1, AUX: 2 (Including FX)
Input Channel Function: PAD: 30 dB (CH1-4)
: Hi-Z: Supported (CH4)
: HPF: 80 Hz, -12 dB/oct. (CH1-3)
: COMP: 1-knob COMP (CH1-4)
: EQ HIGH: 10 kHz +15 dB / -15 dB (Shelving)
: EQ MID: 2.5 kHz +15 dB / -15 dB (Peaking)
: EQ LOW: 100 Hz +15 dB / -15 dB (Shelving)
On-board processors: DSP: SPX Algorithm 24 programs, Feedback suppressor, Master EQ, Monitor EQ
On-board amplifiers: Maximum output power @4ohms: 1kHz THD+N less than 10% (CEA2006) : 630 W + 630 W, 1kHz THD+N less than 1% (CEA2006) : 500 W + 500 W
: Maximum output power @8ohms: 1kHz THD+N less than 10% (CEA2006) : 460 W + 460 W, 1kHz THD+N less than 1% (CEA2006) : 370 W + 370 W
Level Meter: 2 × 7 points LED meter (-20, -10, -6, 0, +6, +10, PEAK)
General specifications: EMX5
Frequency response: Input to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz
Total harmonic distortion: Input to SPEAKERS: 0.1% @ 10 W (40 Hz to 20 kHz), 0.05% @ 50 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: 0.03% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF)
Hum & noise level: Equivalent input noise: -117 dBu (Noise is measured with A-weighting filter)
: Residual output noise: Input to SPEAKERS : -70 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -82dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter)
Crosstalk: -85 dB (1 kHz, Measured with 1 kHz band pass filter)
Protection circuit: Load protection: DC-fault
: Amplifier protection: Over heat protection, Over current protection, Integral power protection
: Power supply protection: Over heat protection, Over current protection
Power requirements: AC 100-240V, 50Hz/60Hz
Power consumption: 42 W (Idle) / 210 W (1/8 Power)
Dimensions: W: 465 mm (18 5/16")
: H: 308 mm (12 1/8")
: D: 325 mm (12 13/16")
Net weight: 9.5 kg (20.9 lbs)
Accessories: Owner's Manual, Technical Specifications, AC power cord (2.5 m)
Options: Foot switch: FC5, Rack-mount brackets: RK-EMX7
Others: Operating Temperature : 0 to +40?

SKU: YAM-EMX5
