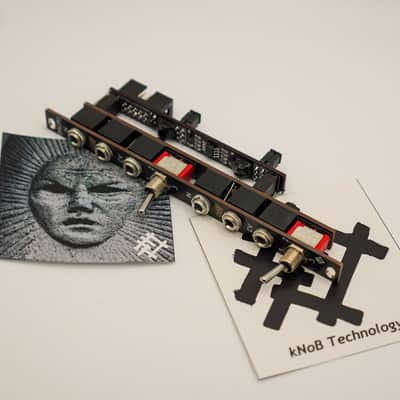

DALPG by Knob Technology - Three-mode Dual Active Low Pass Gate
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
Dalpg the active version has a control circuit that removes the minimum voltage threshold and LPG work like VCA. This device, without supplying voltage to the control input, almost does not pass the signal, when the control voltage is applied, it changes the amplitude and opens like a VCA amplifier, with a characteristic curve corresponding to the resistor optocoupler, which has a small signal release (LPG envelope), and the memory effect of a resistor optocoupler.
Technical specifications: - Normally closed gate / VCA - Noise transmission is dark -75db (+ - 10%) with an input signal Sine 1kHz + -5Vp-p in the mode without cutting the high frequencies. - The maximum CV source current required for maximum opening is 3mA, operating is less than 1mA.
DALPG and DPLPG use matched pairs of opto-resistors and LEDs to provide excellent speed performance. The maximum frequency of distinguishable modulation of one signal by another signal is 10 kHz.
Size: 2hp
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
