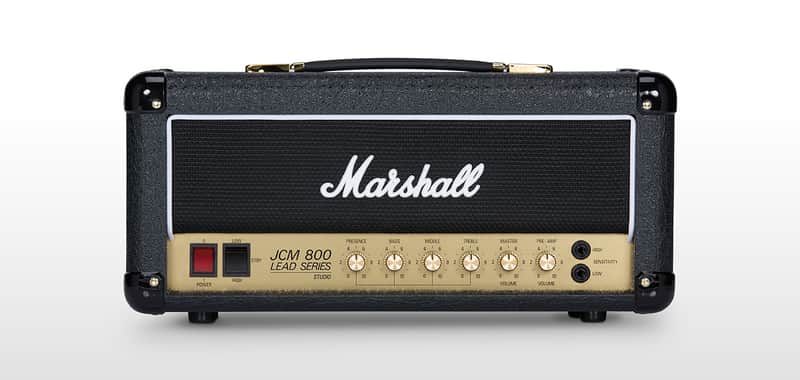

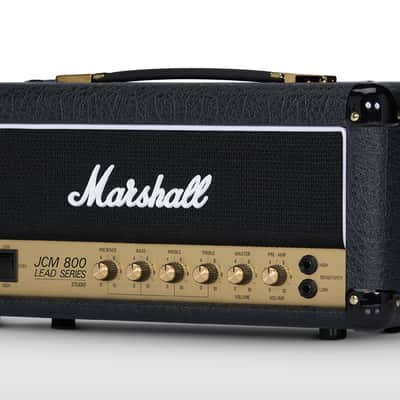

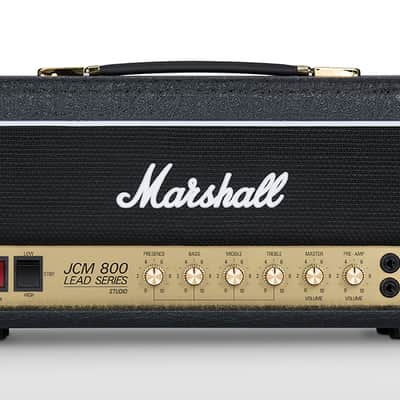

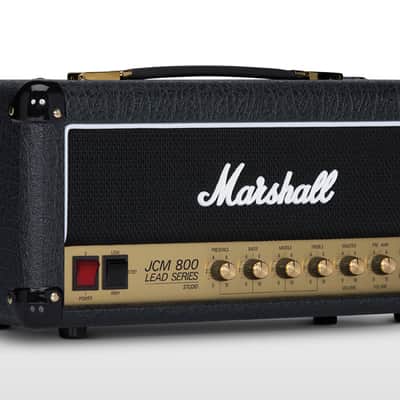

Get the unmistakable JCM®800 roar without upsetting the neighbours with the SC20H. This 20W head captures the spirit of the JCM800 range at a smaller size. Perfect for playing in the studio, or at home with the power reduction option set to 5W, make sure to pair the SC20H with one of our Studio cabinets for a small but perfectly formed Marshall rig.
UK-made and all-valve
The SC20H is made in the very same factory as the JCM800s have been since they were first introduced in the 80s. The instantly recognisable tone is driven by two ECC83 preamp valves, an ECC83 phase splitter and two EL34 valves in the power amp.
Single channel simplicity
Choose either the high input or low input to suit your guitar and style. Ride the preamp volume to take you from warm cleans to barky overdrive and take that iconic Marshall tone anywhere. Just like the older JCM800s, the Studio Classic® features a master volume control for those that want to ramp up the sound. There’s also an effects loop for easily personalising your sound.
No Crew Required
The SC20H is significantly smaller and lighter than its 100W counterparts, making it easy to transport. Complete the setup with the compact SC112 or SC212 cabinets.
Power reduction
Choose between 20W and 5W power output at the flick of a switch. Perfect for jumping from the rehearsal room to the living room and back again.
Technical Specification
Model - SC20H
Range - Studio
Electronics
Output wattage - 20W (with power reduction option to 5W)

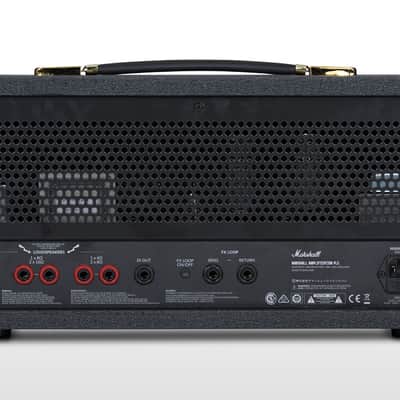

Outputs - 5 x 1/4” jack sockets, selectable 16Ω / 8Ω / 4Ω load
Inputs - 2 x 1/4" jack instrument inputs (high/low sensitivity)
Controls - Presence, Bass, Middle, Treble, Master Volume, Preamp Volume
Effects - None
Effects loop - Yes, series, send/return
Valves
Preamp valves - 2 x ECC83, 1 x ECC83 (phase splitter)
Power amp valves - 2 x EL34
Accessories
Cable - Detachable power cable included, speaker cable included
Dimensions (including feet and handle)
Weight - 9.4 kg / 20.7 lbs
Width - 510mm / 20.1"
Height - 240mm / 9.4"
Depth - 240mm / 9.4"
