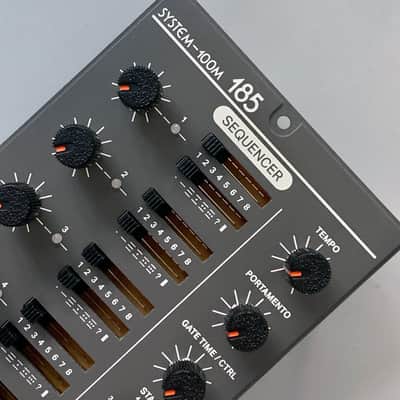

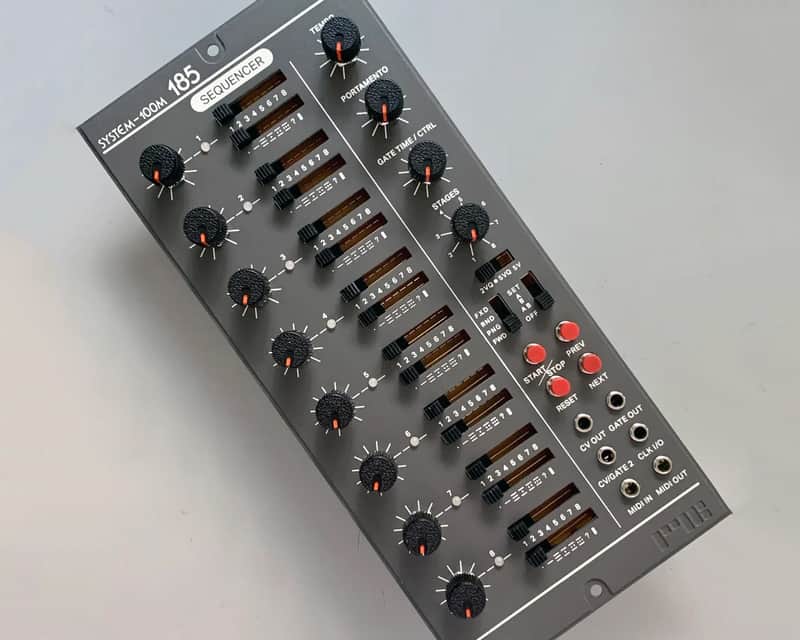

RYK Modular 100M M185 Sequencer Module

The return of the M185 to the Roland System 100m format. The M185 is the original multi-step-per-stage sequencer, allowing easy creation of complex melodic sequences. with a hands-on performance orientated interface. The new updated version improves on the original design from 2009 with many new and useful features.

OVERVIEW

• 8 unique gate modes for creative rhythmic possibilities
• A/B split mode for two separate sequences, like having two sequencers in one box
• 2 channels of CV/GATE and MIDI I/O
• 15 Quantise scales OR pure analogue microtonal CV output

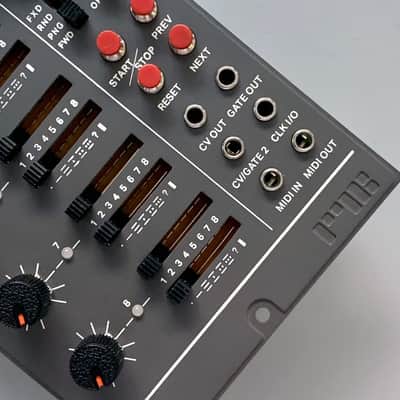

INPUTS & OUTPUTS

• 2 channels of CV and Gate outputs
• Expansion header to connect two M185s for 16 stage sequences
• Reset input [ shared with MIDI input ]
• Sync output [ shared with CH2 gate ]
• Bidirectional Clock I/O
• MIDI input for MIDI clock in, MIDI note transpose
• MIDI output for MIDI clock out, MIDI note output

STAGE DETAILS

• 8 stages, each with individual 1-8 step repeats per stage
• 8 gate modes per stage [ Off, Once, All, 1/2, 1/3, 1/4, Probability or Programmable, and Long ]
• Programmable gate patterns for 'on the fly' X0X style programming of gate triggers

EVEN MORE DETAILS

• AB serial split sequence mode with 1-8 sequence repeats for AAABAAAB sequence structures
• AB parallel split mode, for two separate simultaneous sequences that play at the same time
• Root note offset and reset trigger options from sequence B to A
• 2.5V / 5V voltage range selectable
• MIDI note output including programmable velocity
• MIDI to CV converter mode [wow]
• Programmable glide per stage
• Easy user upgradable firmware using MIDI sysex files

TECHNICAL STUFF

• +12V = 75mA average, 110mA peak
• • 12V = 10mA
• Custom manufactured panel and knobs to match the original Roland System 100m design.

The module comes complete with all the cables needed to get started: * 1 x TRS MIDI adapter, * 1 x TRS CH2 CV/GATE cable * 1 x Roland 100m DIN power cable
