Synare 3 Clone Kit by Helensson - DIY analog drum Synth

The Helensson Synare3 - DIY clone synth experimenter kit
NOTE: Assembly and soldering required - intermediate technical skills
This is a true analog design percussion synth. This vintage style synth board will give you all the great sonic possibilities as only a true analog system can.  Although this circuit is vintage technology compared to today's digital synth world, it is still the method most preferred by seasoned professionals for tone versatility, ease of use, and responsiveness to "on the fly" patch changes. Direct control parameters are completely step-less giving you infinite control combinations. Whether its melodic tones, or the sounds of sweeps, pops, blips, you name it...... this Percussive Synthesizer kit will provide you with an endless variety of sounds.
Triggered by drum pad or piezo, the unit is dynamic and level dependent. There are three oscillators. Oscillator 1 and 2 produce an adjustable pitch, also oscillator 2 can generate an LFO (called SLO on the unit) or an adjustable pitch. Either oscillator can be turned off if single oscillator operation is desired. A white noise generator provided as well as a four pole filter. The Synare 3 has the following controls: Tune (filter frequency), Oscillator 2 level, Sweep, Resonance, and Decay. The final amplifier section has Volume and Decay time controls. The resonance in the filter section can be turned up to produce self-oscillation.

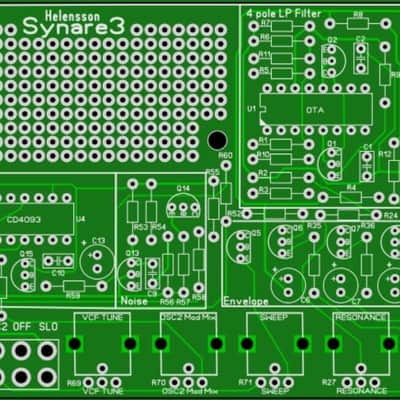

This new version of the Synare 3 kit has been updated to include a small experimenters area near the top of the board... you now have a special place to incorporate your own circuit ideas and mods!

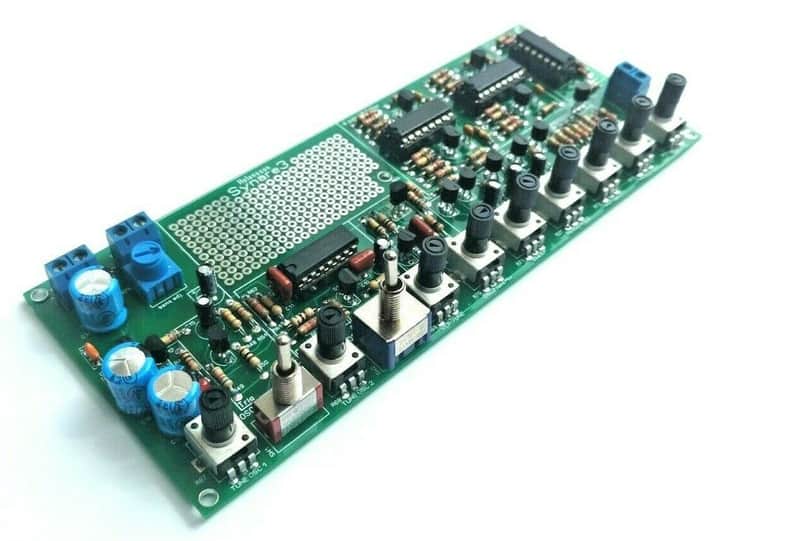

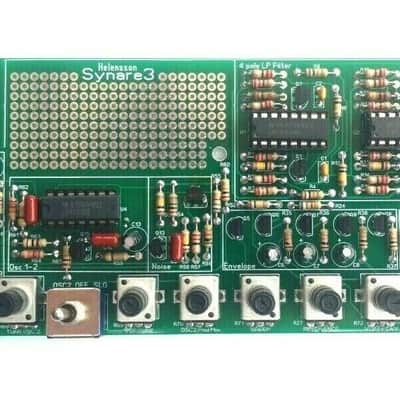

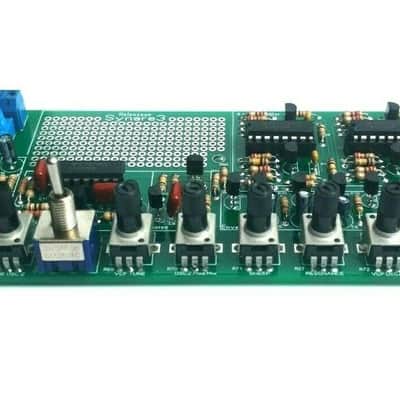

The Helensson Synare3 kit includes the circuit board and all components needed to construct the module, along with sockets for the ICs. The only extra items you'll need are knobs and a suitable enclosure. You may even want to get serious and use several of these kits to build a custom system. The circuit board measures only 3" x 7",  small enough to install inside many pedal enclosures or even the shell of a small drum. Build your own Synare "UFO" with your own custom enclosure or repair your original unit. This kit was designed for use with batteries or a DC power supply (recommended).

Synare3 Controls :
OSCILLATOR 1 - Pitch Source TUNE: controls pitch of Oscillator in OSC 1 position OFF: no function NOISE: white noise source OSC 1: turns on Oscillator pitch
OSCILLATOR 2 - Pitch source and controller TUNE: controls pitch of oscillator in OSC 2 position or speed of LFO in SLO position OFF: no function SLO: makes oscillator an LFO controller OSC 2: turns on oscillator pitch (or higher speed LFO)
FILTER - Sound modifier or source
TUNE - controls sound quality of an oscillator or tune (pitch) of the filter OSC 2: controls how much LFO (Oscillator 2) affects the filter
SWEEP - determines how much pitch drop the Tune of the Filter will have RES: controls sound quality of an oscillator or turns the Filter into a sound source DECAY: determines how long it takes for the Sweep to effect the Tune of the Filter
AMPLIFIER - Controls how the output will sound DECAY- determines how long the sound will take to die out
VOL - controls the volume of the output.
This kit Includes:   Double sided Circuit Board Piezo sensor disk Resistors Capacitors Switches ICs IC Sockets Semiconductors Pots Diodes Terminals.
This kit does not include: enclosure knobs batteries or power supply
