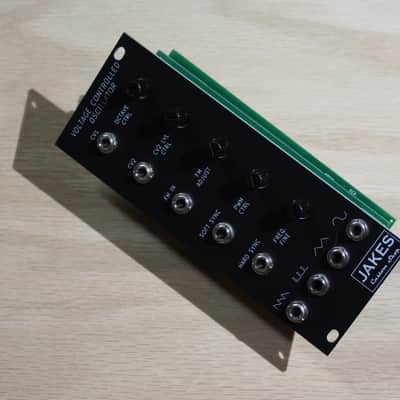

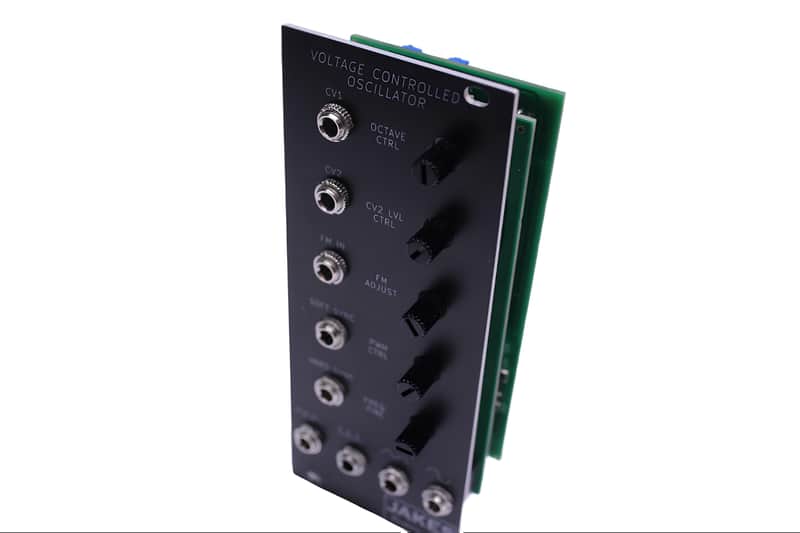

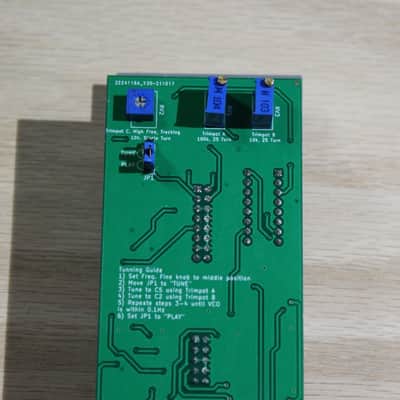

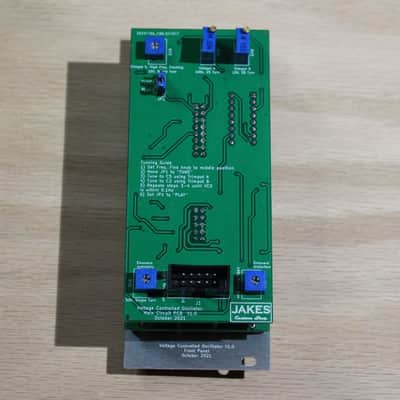

The Jake’s Custom Shop Voltage Controlled Oscillator is a one-volt-per octave audio-frequency oscillator. Three control voltage inputs and two synchronizing inputs are used to modulate the signal frequency. Four outputs consist of a saw-tooth, pulse-width modulated square wave, triangle wave and sine wave.

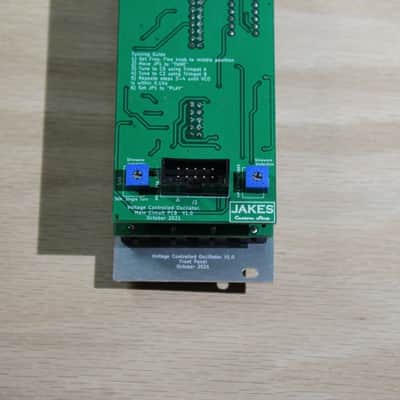

-10-Pin shrouded IDC
-Wide range frequency control
-Mid-range frequency control
-Narrow-range frequency control
-Fine Frequency tuning

Low Current Draw:
+12V: 20.5mA
+5V: 0mA
-12V: 20.1mA

Output frequency: 0.1 Hz(min) and 50 kHz (max)
Saw-tooth wave voltage [V]: -4 (min) and +4 (max)
Square wave voltage [V]: -5(min) and +5(max)
Triangle wave voltage [V]: -4(min) and +4(max)
Sine wave voltage [V]: -4(min) and +4(max)

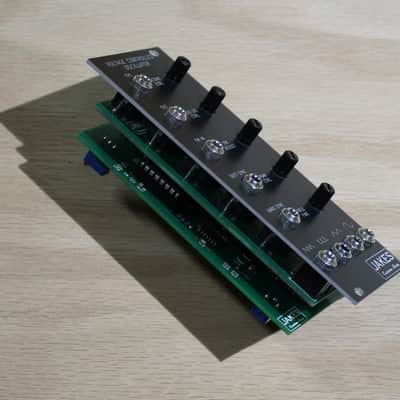

PCB dimensions: 39 x 106.5 mm
Panel dimensions: 50 x 128.5 mm (10HPX3U)
Depth of panel: 35 mm
Input / Output connection: 3.5 mm female panel mount jacks

Datasheet is available on my website
