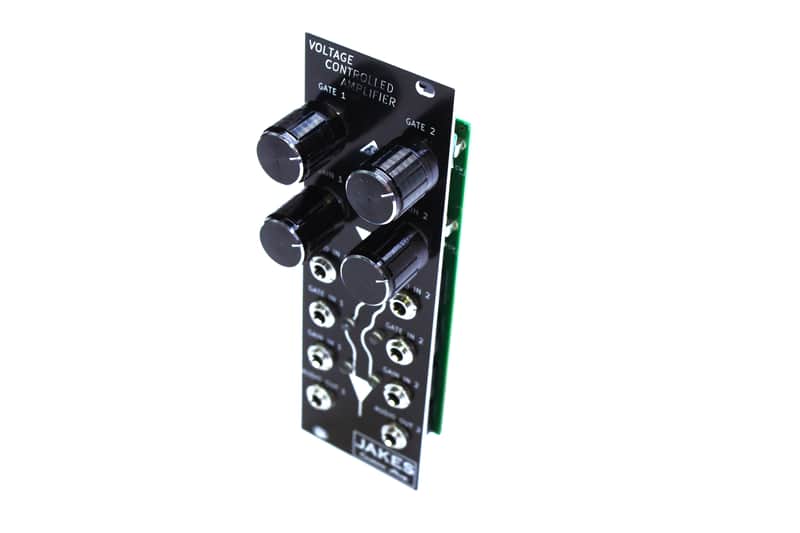

Dual Voltage Controlled Amplifier Eurorack Module
Price$75
1
9 in stock
Listed:over a month ago
Views:177
Watchers:9
Offers:1
Erie, PA, United States
14-Day Return Policy
Enjoy peace of mind with your new gear
14-Day Return Policy
Enjoy peace of mind with your new gear
The Jake’s Custom Shop Voltage Controlled Amplifier is a standard 2-channel device. Each channel has two level inputs and one audio input. ENVELOPE IN jack determines off-state volume and can be fine-tuned with the LOW LVL potentiometer. GAIN CV IN jack controls the on-state volume with fine adjustment by the GAIN LVL potentiometer. This VCA is great for modulating the volume of audio signals in conjunction with an envelope generator or varying control voltage signals.
We've listened to your feedback and meticulously revamped our popular Dual VCA module, packing it with powerful upgrades that make sculpting your sound smoother than ever:
Individual CV Input Control: Each of the two VCAs boasts dedicated Envelope and Gain CV inputs with fine-tuning potentiometers, all accompanied by clear LED level indicators.
Streamlined Layout: Ditch the cramped configurations! We've reimagined the module with all potentiometers conveniently positioned on top and jacks neatly lined up at the bottom. Reach every knob with ease and keep your patch cables flowing freely.
Uncompromising Performance: The V2.0 stays true to its versatile roots, offering two channels with dual level inputs and a single audio input each. Craft intricate fades and swells using the Envelope In jack and Low Level pot for setting off-state volume, then dial in the perfect punch with the Gain CV In jack and Gain Level pot for precise on-state control.
FEATURES
Low Current Draw:
+12V: 63.2mA
+5V: 0mA
-12V: 9.6mA
Audio OUT [V]: -7(min) and +7(max)
Envelope IN [V]: 0(min) and 5(max)
Gain CV IN [V]: 0(min) and 5(max)
Audio IN [V]: -5(min) and +5(max)
PCB dimensions: 39 x 106.5 mm
Panel dimensions: 40.3 x 128.5 mm (8HPX3U)
Depth of panel: 15 mm
Datasheet is available on my website
Condition | |
Brand | |
Model |
|
Finish |
|
Categories | |
Year |
|
Made In |
|
The Jake’s Custom Shop Voltage Controlled Amplifier is a standard 2-channel device. Each channel has two level inputs and one audio input. ENVELOPE IN jack determines off-state volume and can be fine-tuned with the LOW LVL potentiometer. GAIN CV IN jack controls the on-state volume with fine adjustment by the GAIN LVL potentiometer. This VCA is great for modulating the volume of audio signals in conjunction with an envelope generator or varying control voltage signals.
We've listened to your feedback and meticulously revamped our popular Dual VCA module, packing it with powerful upgrades that make sculpting your sound smoother than ever:
Individual CV Input Control: Each of the two VCAs boasts dedicated Envelope and Gain CV inputs with fine-tuning potentiometers, all accompanied by clear LED level indicators.
Streamlined Layout: Ditch the cramped configurations! We've reimagined the module with all potentiometers conveniently positioned on top and jacks neatly lined up at the bottom. Reach every knob with ease and keep your patch cables flowing freely.
Uncompromising Performance: The V2.0 stays true to its versatile roots, offering two channels with dual level inputs and a single audio input each. Craft intricate fades and swells using the Envelope In jack and Low Level pot for setting off-state volume, then dial in the perfect punch with the Gain CV In jack and Gain Level pot for precise on-state control.
FEATURES
Low Current Draw:
+12V: 63.2mA
+5V: 0mA
-12V: 9.6mA
Audio OUT [V]: -7(min) and +7(max)
Envelope IN [V]: 0(min) and 5(max)
Gain CV IN [V]: 0(min) and 5(max)
Audio IN [V]: -5(min) and +5(max)
PCB dimensions: 39 x 106.5 mm
Panel dimensions: 40.3 x 128.5 mm (8HPX3U)
Depth of panel: 15 mm
Datasheet is available on my website
